DIRT KING | Mid Travel Kit | (2004-2024) Nissan Titan, (2004-2024) Nissan Armada or (2004-2015) Infiniti QX56, (2014-2024) Infiniti QX80 | DK-701907

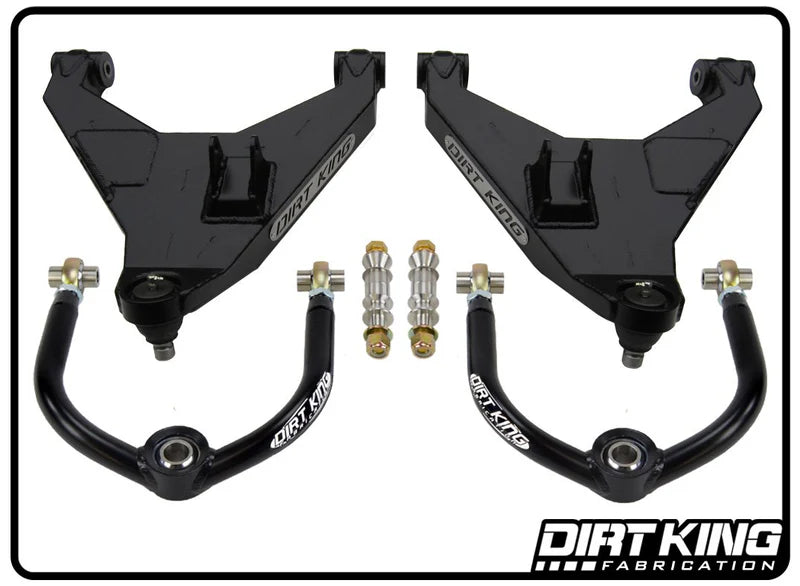

Dirt King, Front Mid Travel Kit

#DK-701907

Application:

2004-2024 Nissan Titan (does not include XD models)

2004-2024 Nissan Armada

2004-2015 Infiniti QX56

2014-2024 Infiniti QX80

(may not be compatible with HBMC equipped QX)

Benefits:

• More travel, more durability, and more articulation with heavy duty ball joints.
• No common lower arm clunking when stopping or driving from a stop.

From Dirt King Website:

"The Dirt King mid travel kit was developed to drastically improve the vehicle's off-road handling without compromising its day-to-day driving characteristics. This suspension system allows for 10.5” of travel and accepts up to a 35” tire. The kit is compatible with 2WD and 4WD models. We’ve upgraded the lower arm outer pivot to heavy-duty Moog ball joints and 1” uniballs for the upper arm outer pivot. This allows for superior strength and increased articulation. The suspension system also accommodates for bump stops to be used with the coil overs if desired. This kit is CAD designed, thoroughly tested, and 100% made in America resulting in a product we’re proud to put our name on!"

Specifications:

• Wheel Travel: 10.5”
• Amount of Lift: 0-3”
• Track Width: Stock Width
• Maximum Tire Size: 35”
• Maximum Back Spacing: 4.75”
• Minimum Rim Size: 17”
• Bump Stop Size: 2.0” x 2.0”
• Coil Over Shock Size with Shock Hoop Kit: 2.5” x 8”

Coilover Recommendation:

Icon extended travel or Carbon extended travel options are recommended.

Wheel Travel:

When shopping long travel kits, many consumers tend to focus just on travel numbers. This is the reason many companies claim inaccurate numbers or don’t disclose the amount of work involved to achieve these numbers. Our goal is to build a suspension system with the highest amount of wheel travel without requiring major modifications to the vehicle or compromising its overall drivability.

Tire Info:

When using 35” tires with this kit, modifications to the wheel well will need to be made. The firewall pinch weld will need to be folded over and the front cab mount needs to be shaved to avoid contact while turning. The upper wheel well will also need to be modified to avoid contact at full bump.
