Icon | 1.25-3.25" |Stage 3 Suspension Lift (TRD) | 3.0" Billet Suspension System; #K53213S

Icon 1.25-3.25" Stage 3 Suspension Lift (TRD), 3.0" Billet Suspension System,

K53213S

FEATURES & BENEFITS:

• Vehicle specific design for 2022-2024 Toyota Tundra
• 3.0 Series front coilovers with ICON’s multi-stage, tunable hydraulic “Bump Zone”
• Adjustable front ride heights from 1.25-3.25” of front lift over stock when used with included billet aluminum UCAs
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• Triple rate rear coil springs improve performance and ride quality while providing .75" of rear lift (TRD models)
• On-vehicle adjustable rear track bar properly centers rear axle while also improve rear suspension performance
• 3.0 Series rear remote reservoir shocks provide maximum performance, 20% increase in wheel travel, and balanced tune with coilovers
• All ICON shock absorbers are fully rebuildable and re-tunable

TECH INFO:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
• APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
• APPLICATION NOTE #142: Not Compatible With Tundras Equipped With Load-Leveling Rear Height Control Air Suspension.
• APPLICATION NOTE #149: For 4Wd Models Without Trd Off-Road Package ICON Recommends Using ICON Diff Drop (Part# 55156) Or Using Toyota Trd Axles (Part# 434200C020 Driver / 434100C020 Pass). Failure To Do So Could Result In Front Axle Damage. Not Required For Trd Pro.
• TECH NOTE: If upgrading a Tundra equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional
• TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-3.25" over stock
• TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-2.75" over stock
• TECH NOTE: Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 2.25-4.25” over stock
• TECH NOTE: Tundra TRD Pro will have lift height range of 0-1.5” over stock
• TECH NOTE: Included rear springs net .75" of rear lift on a Tundra equipped with TRD Off-Road or TRD Sport suspension packages and TRD Pro. A Tundra without TRD Off-Road or TRD Sport suspension packages will net 1.25" of rear lift. If lower rear ride heights are desired, consider ICON part # K53213.
• TECH NOTE: Tundras equipped with automatic leveling headlights also require part number 55153

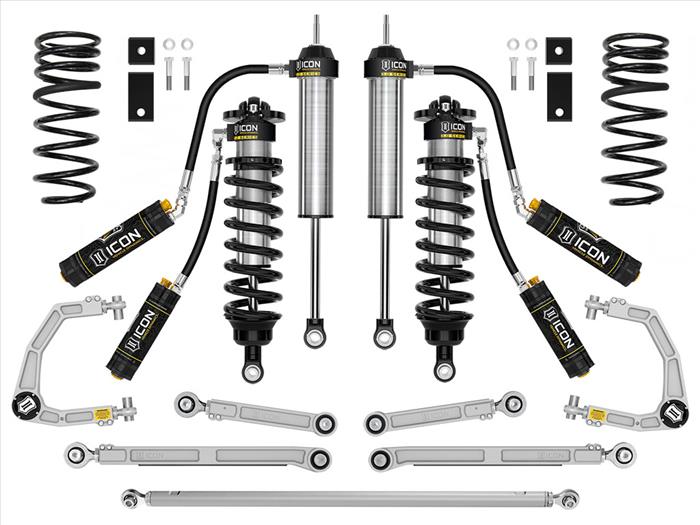

SYSTEM COMPONENTS:

• 58775C (QTY: 1) | 22-24 TUNDRA/23 SEQUOIA 3.0 VS RR CDCV COILOVER KIT
• 58561DJ (QTY: 1) | 22-24 TUNDRA/23 SEQUOIA BILLET UCA DJ PRO KIT
• 55154 (QTY: 1) | 22-24 TUNDRA/23 SEQUOIA SWAY BAR DROP KIT
• 54002 (QTY: 1) | 22-24 TUNDRA/23 SEQUOIA BILLET REAR LOWER LINK KIT
• 54102 (QTY: 1) | 22-24 TUNDRA/23 SEQUOIA BILLET REAR UPPER LINK KIT
• 54202 (QTY: 1) | 22-24 TUNDRA/23 SEQUOIA BILLET REAR ADJ TRACK BAR KIT
• 57845CP (QTY: 1) | 22-24 TUNDRA/23 SEQUOIA REAR 3.0 VS RR CDCV PAIR
• 51211 (QTY: 1) | 22-24 TUNDRA 1.25" LIFT TRIPLE RATE REAR COIL SPRING KIT
