Icon | 2-3.5" Lift | Stage 5 | 2.5" Suspension System W/Tubular UCAs | (2022-2024) Toyota Tundra | K53195T

Icon 2-3.5" Lift, Stage 5, 2.5" Suspension System, Tubular 2022-2024 Toyota Tundra

K53195T

FEATURES & BENEFITS:

• Vehicle specific design for 2022-2024 Toyota Tundra
• 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
• Adjustable front ride heights from 2-3.5" of front lift over stock when used with included tubular UCAs
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• 2.0 Aluminum Series rear remote reservoir shocks provide balanced tune with coilovers and increased performance
• All ICON shock absorbers are fully rebuildable and re-tunable
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

TECH INFO:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5" w/ 5.75" Backspace / 25mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
• APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
• APPLICATION NOTE #142: Not Compatible With Tundras Equipped With Load-Leveling Rear Height Control Air Suspension.
• APPLICATION NOTE #149: For 4Wd Models Without Trd Off-Road Package ICON Recommends Using ICON Diff Drop (Part# 55156) Or Using Toyota Trd Axles (Part# 434200C020 Driver / 434100C020 Pass). Failure To Do So Could Result In Front Axle Damage. Not Required For Trd Pro.
• TECH NOTE: If upgrading a Tundra equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional
• TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 2-3.5" over stock
• TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 2-3" over stock
• TECH NOTE: Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 3-4.5" over stock
• TECH NOTE: Tundra TRD Pro will have front lift height range of 0-1.75" over stock
• TECH NOTE: Included rear shocks are compatible with 0-1.5" of rear lift over stock on models equipped with rear coil springs without TRD suspension package. Rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs with TRD suspension package and TRD Pro.

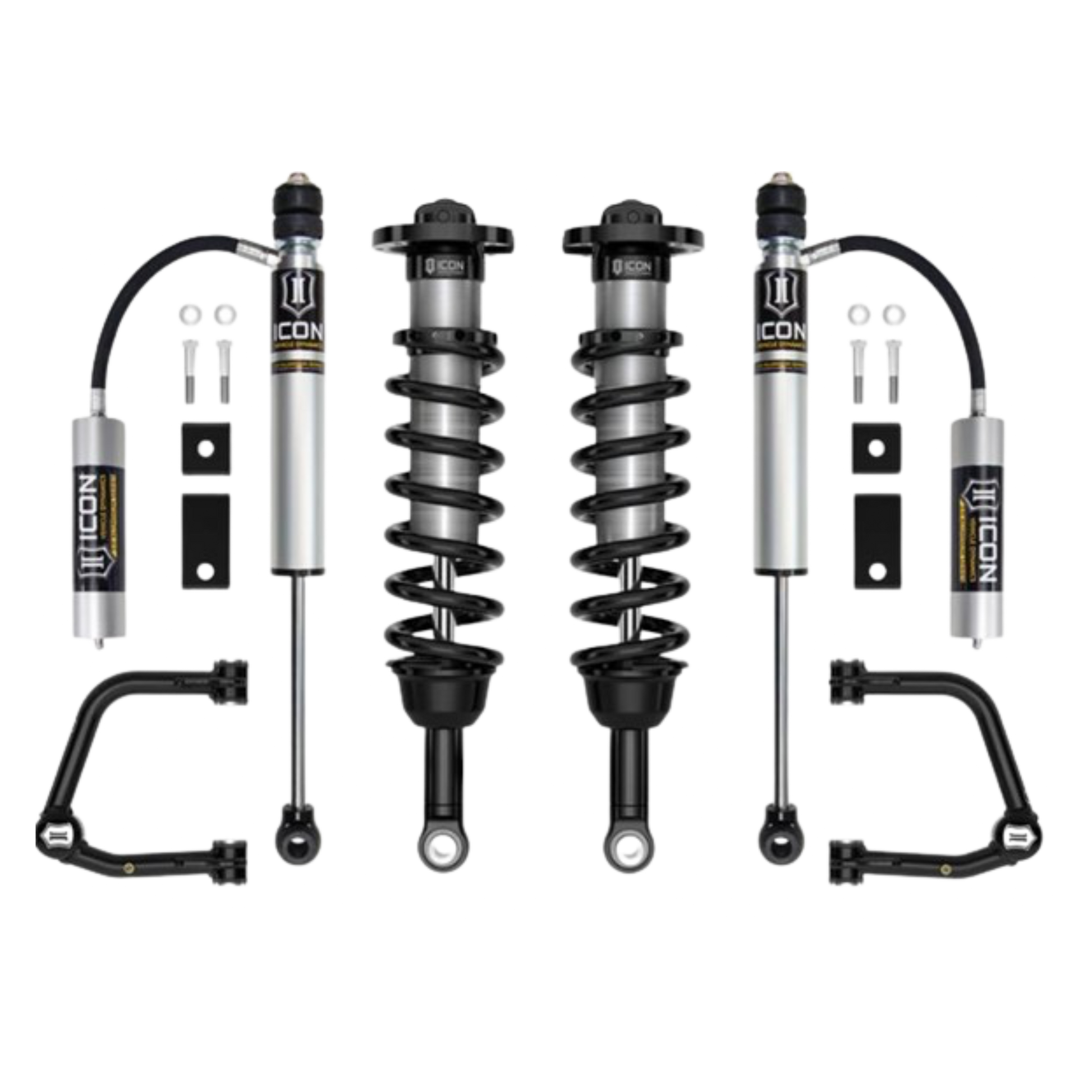

SYSTEM COMPONENTS:

• 58670 (QTY: 1) | 22-24 TUNDRA/23 SEQUOIA 2.5 VS IR COILOVER KIT
• 58461DJ (QTY: 1) | 22-24 TUNDRA/23 SEQUOIA TUBULAR UCA DJ PRO KIT
• 55154 (QTY: 1) | 22-24 TUNDRA/23 SEQUOIA SWAY BAR DROP KIT
• 56516R (QTY: 2) | 22-24 TUNDRA 0-1.5"/23 SEQUOIA 0-3" REAR 2.0 VS RR
