Fabtech | 3″ Uniball UCA System | W/ Front Dirt Logic 2.5 Coilovers | Rear Dirt Logic 2.25 Reservoir Shocks | (2010-24) TOYOTA 4RUNNER 4WD [W/O KDSS] | K7079DL

Superior Construction for Maximum Performance

The Upper Control Arms feature 1.25" OD, 0.120" wall thick chromoly tube construction with 1" diameter Stainless Steel Uniballs. These attach to the factory spindle without drilling, ensuring a seamless and robust fit. Designed to work with Fabtech’s Stainless Steel Dirt Logic 2.5 Coilover shocks, this combination offers up to 10" of wheel travel for a comprehensive front suspension upgrade. The cold wound coil springs in the Dirt Logic 2.5 Coilovers provide a smooth ride while handling aggressive off-road conditions with ease.

Dual Rate Coil Springs for Enhanced Ride Quality

Our Fabtech rear Dual Rate coil springs replace the factory springs with a sophisticated two-stage design. The first stage delivers a supple ride quality at lower speeds and increases wheel travel when navigating large off-road obstacles. The second stage offers a higher spring rate for greater load-carrying capacity, ensuring a superior ride at higher speeds. Additionally, the rear Dirt Logic 2.25 shocks provide 9" of travel due to the remote reservoir, allowing for the full stroke of the shock.

Ideal for Overlanding and Weekend Adventures

This suspension system is perfect for those seeking enhanced performance with a minimal lift height. It's an excellent choice for daily drivers who also enjoy overlanding and hitting the trails on weekends.

Features

• Eliminates upper ball joint with a strong 1" ID Stainless American Uniball
• Chromoly tubing reduces flex found in stock arms for a more positive road feel
• 17-4 Stainless Steel heat-treated Uniball pin fits into the factory ball joint taper without spindle modification
• Dual Rate rear coil springs offer increased flexibility and a smooth ride
• Dirt Logic Shocks provide up to 10" of front wheel travel and 9" of rear travel
• Stainless Steel body with a 7/8" NitroSteel® piston rod

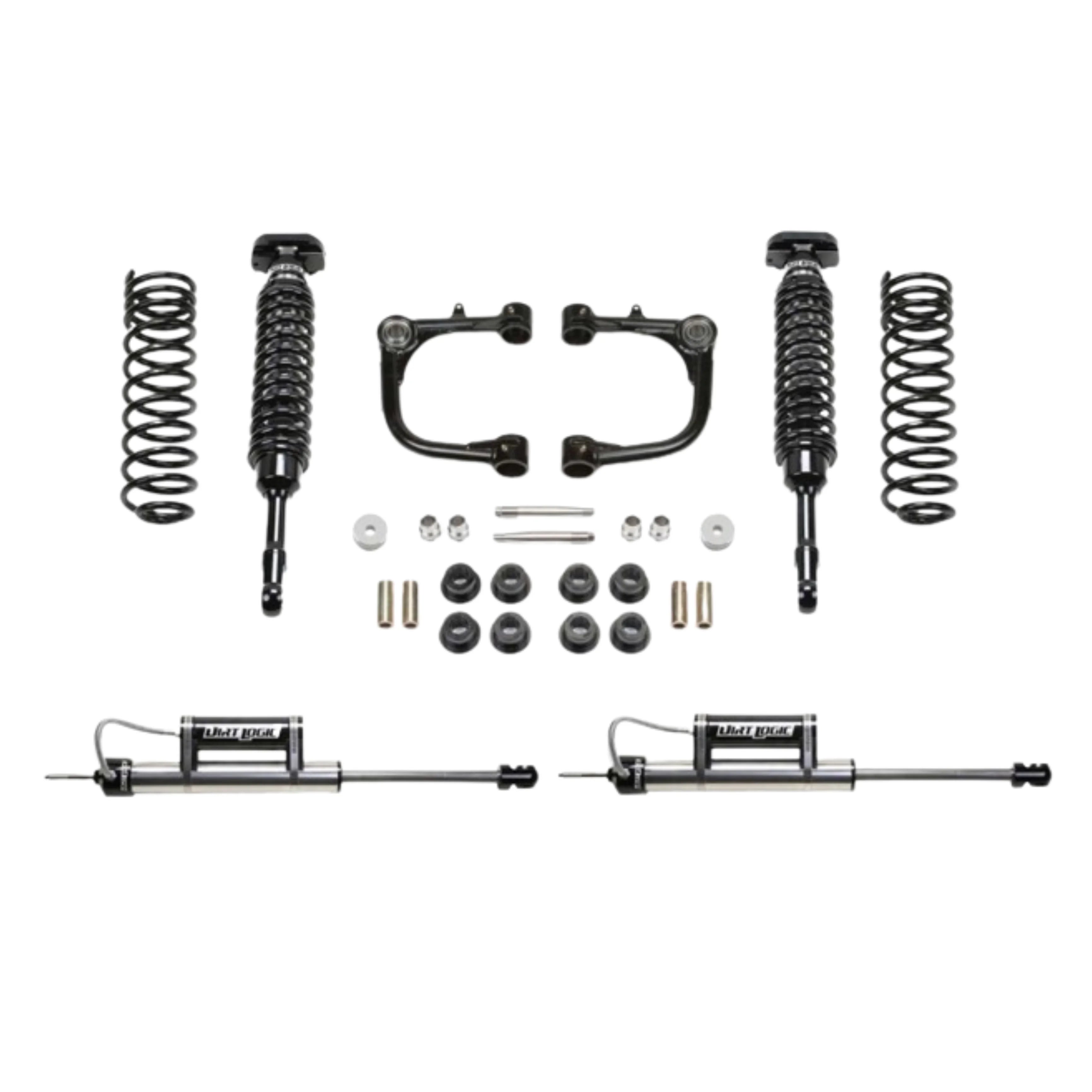

Part Numbers

• FTS26096: Uniball Upper Control Arms
• FTS26085: Rear Coil Kit
• FTS26100: Front Dirt Logic 2.5 Coilovers
• FTS801392: Rear Dirt Logic 2.25 Resi Shocks
