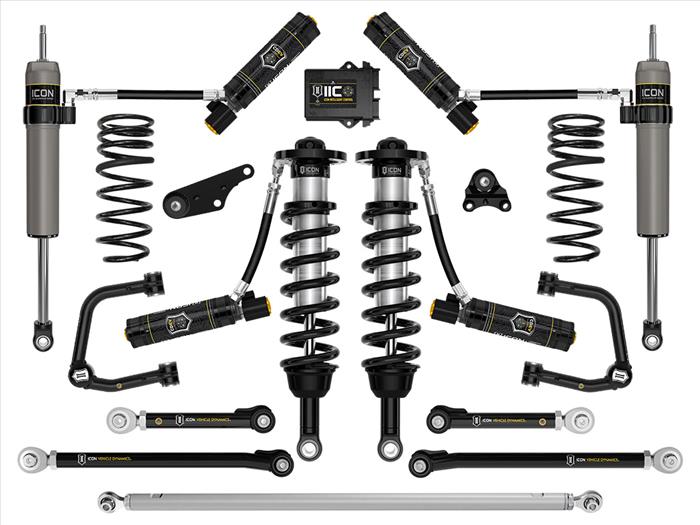

Icon | 1.25-3" Lift |Stage 13 Suspension System | Tubular UCA | 2024+ Toyota Tacoma

Icon | 1.25-3" Lift |Stage 13 Suspension System | Tubular UCA | 2024+ Toyota Tacoma

Application:

2024+ Toyota Tacoma

Features:

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Increased wheel travel and improved ride quality over stock
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)

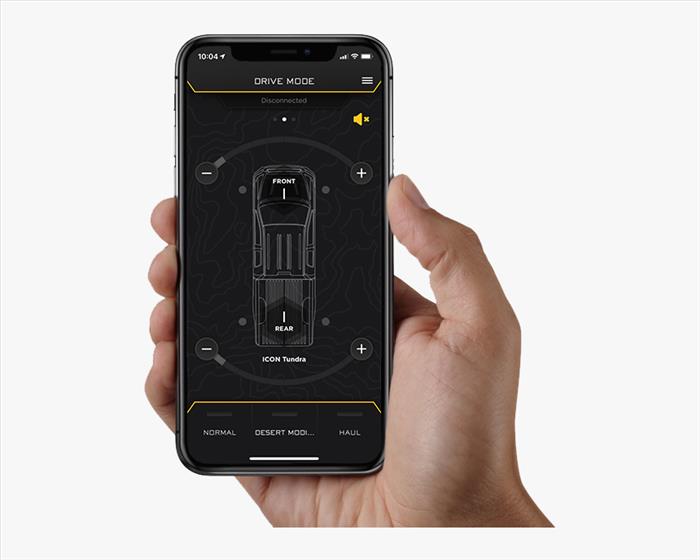

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• ICON engineered front and rear coil springs
• FK Rod End bearings for extended longevity and minimal deflection
• Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improve rear suspension performance
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers


Tech Info:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 5.75” Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
• APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs
• APPLICATION NOTE #169: 4WD models require front differential drop part # 55160
• TECH NOTE: An iOS operated device is required to run ICON Intelligent Control App
• TECH NOTE: This kit is configured for fitment on 4WD models. If installing onto a 2WD 2024 Toyota Tacoma SR5 or TRD Sport, front differential drop kit part number 55160 is not needed and the other suspension system components can be ordered individually with full system functionality.
