Icon | Remote Reservoir Coilovers | Equipped W/Dampening Adjustment Knobs | Toyota 4Runner or Toyota FJ Cruiser or Lexus GX460 | 58746C

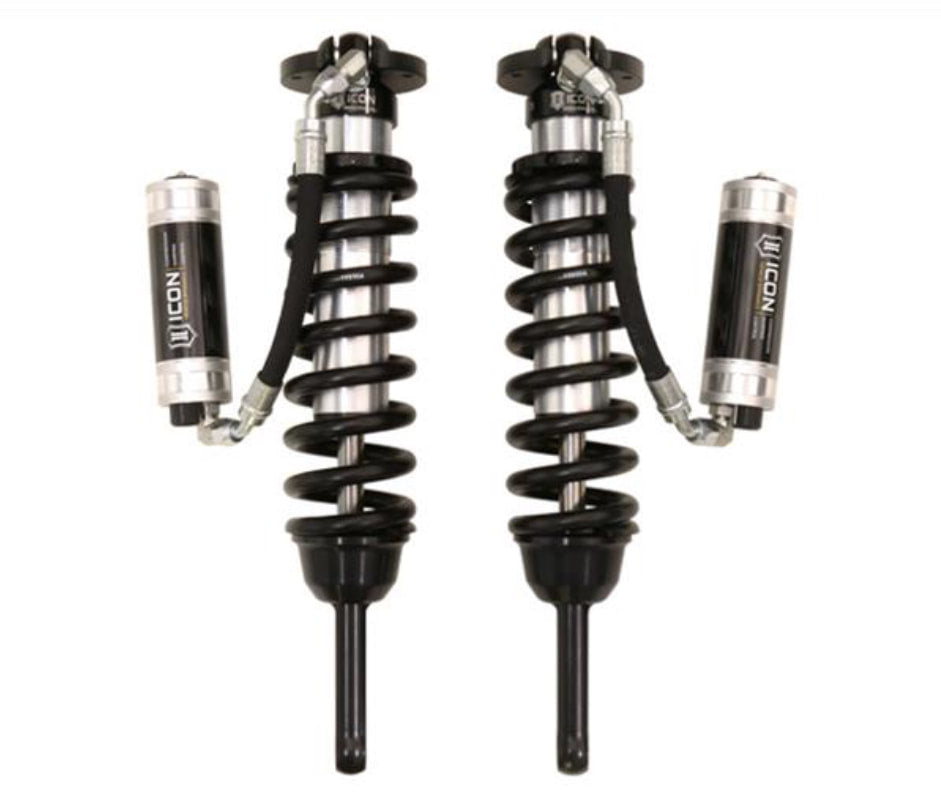

Icon Remote Reservoir Coilovers Equipped With Dampening Adjustment Knobs, Toyota 4Runner or Toyota FJ Cruiser or Lexus GX460

58746C

Application:

2010-2023 Toyota 4Runner

2010-2014 Toyota FJ Cruiser

2010-2023 Lexus GX460

Features and Benefits:

• Increased wheel travel and improved ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Adjustable ride height for 0-3.5" of front lift height over stock
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable
• 100% Bolt-on - no drilling, cutting or welding necessary for installation

Tech Info:

• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 w/ 5" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9 w/ 5" Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• APPLICATION NOTE #47: 700lb coil spring available for heavier equipped vehicles.
• APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
• TECH NOTE: Standard travel length coilovers are compatible with stock front upper control arms
