Icon | Stage 9 Suspension System | Tubular | 1.25"-3" Lift Kit
$6,830.73$7,589.70
K53359T
Quality Guarantee
Same Day Processing
Easy Returns
Icon | Stage 9 Suspension System | Tubular | 1.25"-3" Lift Kit
Application:
2024+ Lexus GX550
Features and Benefits:
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- Increased wheel travel and improved ride quality over stock
- Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
- Adjustable coilovers provide 1.25-3" front lift height over stock
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment
- On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
- Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
- FK Rod End bearings for extended longevity and minimal deflection
- 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
Tech Info:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
- Recommended Aftermarket Tires: 34" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
- APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
- APPLICATION NOTE #175: Will not fit GX550 Overtrail

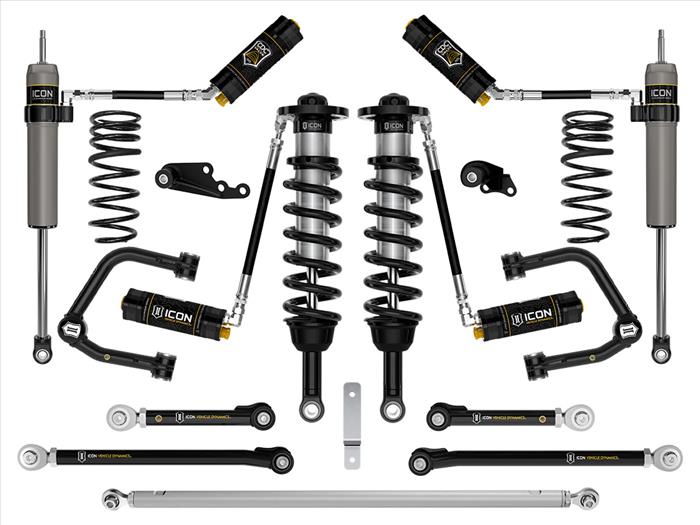

System Components:
- 58790C (QTY: 1) | 24 GX550FRONT 2.5 VS RR CDCV COILOVER KIT
- 58452DJ (QTY: 1) | 24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
- 55156 (QTY: 1) | 22-24 TUNDRA/23-24 SEQUOIA/24 GX550 DIFF DROP KIT
- 57870CP (QTY: 1) | 24 LC250/24 GX550 0-3" REAR 2.5 VS CDCV RR PAIR
- 52752 (QTY: 1) | 24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
- 54202 (QTY: 1) | 22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
- 54003T (QTY: 1) | 24 LC250/24 GX550 TUBULAR REAR LOWER LINK KIT
- 54102T (QTY: 1) | 22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/LC250/GX550 TUBULAR REAR UPPER LINK KIT
- 55161 (QTY: 1) | 24 LC250/24 GX550 REAR UPPER LINK SENSOR BRACKET KIT
Vehicle Compatibility
Confirm this part fits your vehicle before ordering
