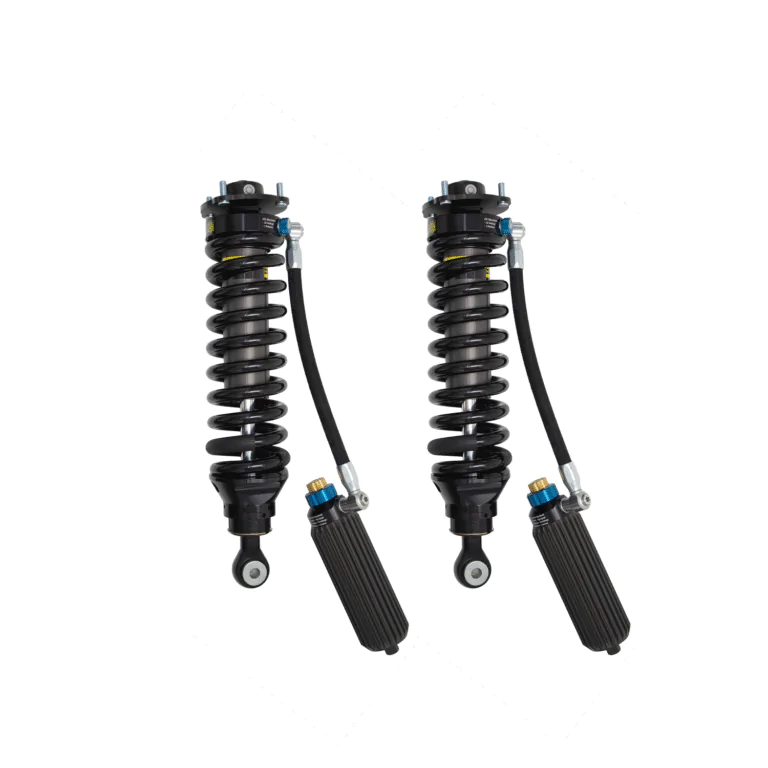

Bilstein | 8112 Black Hawk 1-2.25″ Front Lift Coilovers | 2022+ Toyota Tundra

Bilstein | 8112 Black Hawk 1-2.25″ Front Lift Coilovers | 2022+ Toyota Tundra

(1) Bil41-332245 | (1) Bil41-332238

Application:

2022+ Toyota Tundra 4x4

Description:

BILSTEIN B8 8112 Black Hawk 3-Way adjustable coilovers are direct fit, feature packed solutions for trucks and SUVs. The large 2.65” OD Aluminum shock body paired with a unique finned remote reservoir offers ZoneControl® position sensitive damping in both compression and rebound.  Plus, 3 external damping adjustments for high/low speed compression and the internal bump stop provides a wide range of damping option.  The ZoneControl® offers a significant advantage by virtually eliminating hard bottoming and keeping the ride buttery smooth over the small stuff. Whether you’re driving rugged trails or paved roads, fully loaded or unloaded, the B8 8112 Black Hawk offers the “best in class” ride experience.

Collapsed Length (in): 16.80

Extended Length (in): 21.83

Collapsed Length (mm): 426.8

Extended Length (mm): 554.4

Lower Mount Type: Eye 19.05mm

Upper Mount Type: Eye 12mm

Internal Design: Monotube

Finish: Dampers: Zinc Plated/Springs: Black

Reservoir: Yes – Finned Aluminum

Body Design: Smooth Body (Coilover)

Body Diameter (od): 2.65 in.

Piston Diameter: 60mm

Body Material: Aluminum

Boot Included: No

Spring Seat Included: Yes

Front Main Spring Rate (lbs/in): 600 lbs

Shaft Diameter (mm): 22.0

Adjustable Damping: Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)+

Notes:

Aftermarket upper control arms required.
