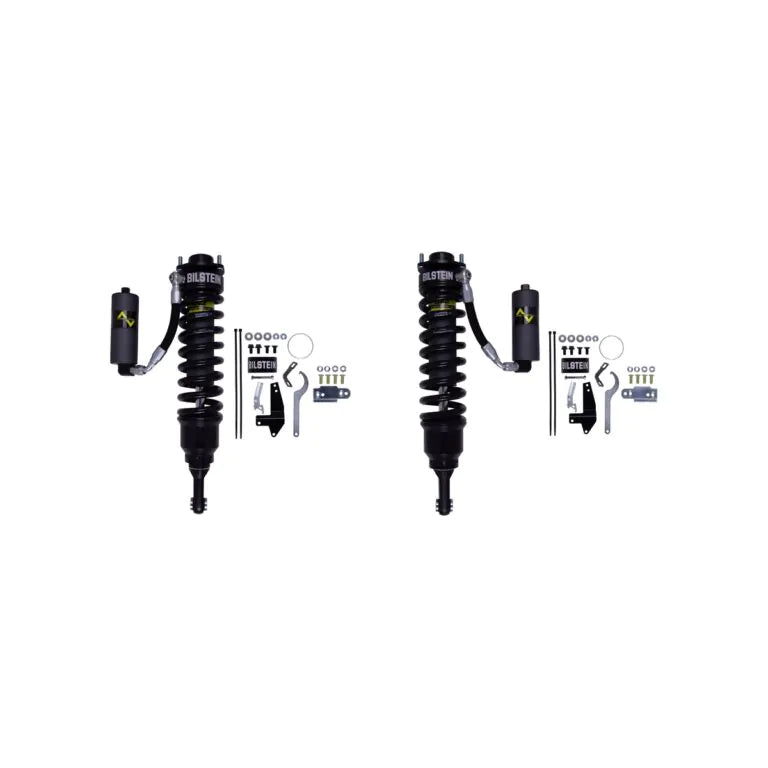

Bilstein B8 8112 (ZoneControl CR)

Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

This listing includes a matched left and right Bilstein shock pair.

Application Notes

• Provides 1.3-3" Front Lift
• Provides 1.3-3.4" Front Lift
• Provides 1.3-3.4" Front Lift; Without X-REAS Suspension
• Provides 2.2-3.3" Front Lift
• Provides 2.2-3.3" Front Lift; Without X-REAS Suspension
• Provides 2.8-4" Front Lift
• Provides 2.8-4" Front Lift; Without X-REAS Suspension

Details

• Collapsed Length (in): 17.99
• Extended Length (in): 22.80
• Lower Mount Type: Eye 14.1mm
• Upper Mount Type: Special
• Internal Design: Monotube
• Finish: Dampers: EVO Grey / Springs: Black
• Reservoir: Yes
• Body Diameter (od): 2.65 in.
• Piston Diameter: 60mm
• Adjustable Damping: Non-Adjustable
• Warranty: Limited 2-Year Warranty
