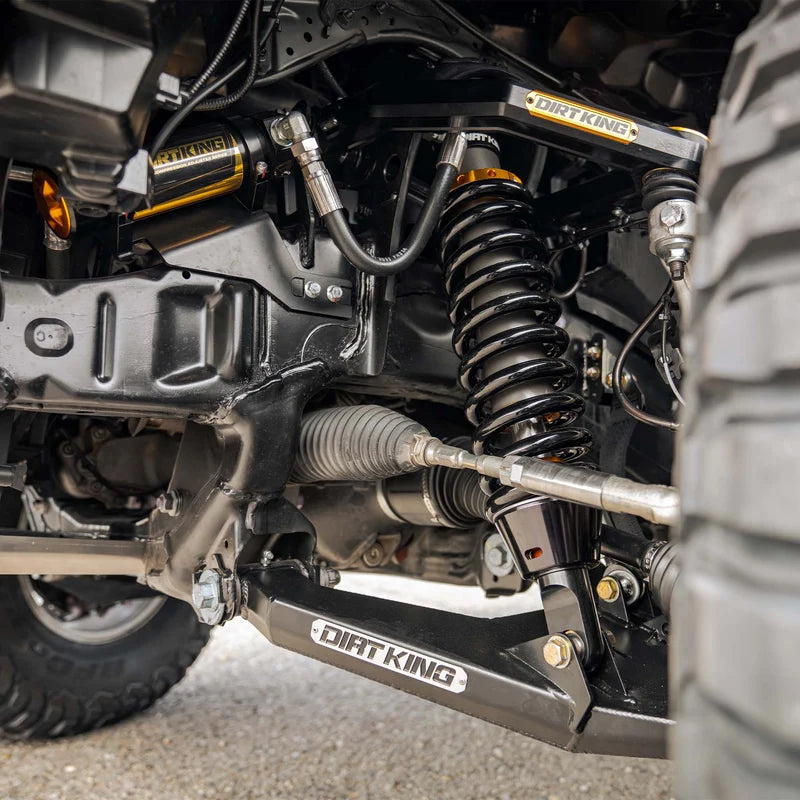

Dirt King Long Travel Kit

Dirt King Long Travel Kit

Application:

2024+ Toyota Tacoma 2WD / 4WD

Description:

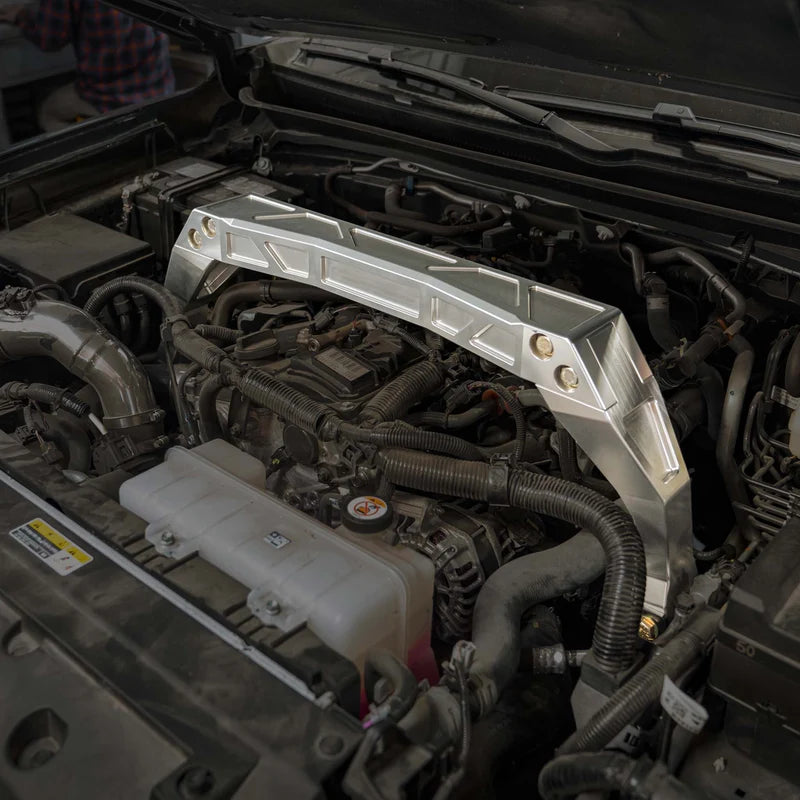

Take your 2024+ Tacoma to the next level with the Dirt King Long Travel Kit. Engineered for superior off-road performance while still providing everyday on-road comfort. Our most advanced system yet—featuring billet upper control arms, optional billet bolt-on cross brace, and Dirt King LT shocks for a complete, next-level package.

The system widens the track by 3.5” per side and provides 13" of wheel travel, a major upgrade over stock. The revised geometry also stretches the wheelbase just enough to clear up to 37” tires.

Durability and low maintenance were at the core of our design. The upper control arms use greaseless SilentSpin bushings, while the lower control arms feature PTFE-infused Delrin bushings for smooth operation. For the outer pivots, we chose heavy-duty ball joints over uniballs for increased strength and a sealed design that enhances longevity in harsh environments.

All essential mounting hardware is provided, and the kit supports multiple installation setups, whether you opt for coilovers only, coilovers with bypasses, or coilovers with bump stops.

From capability and comfort to style and stance, this kit delivers the full upgrade. The added width and premium components give your Tacoma a confident, aggressive look built for real off-road adventure.

Specifications:

• Wheel Travel: 13”
• Lift Range: 0–3”
• Track Width: 3.5” wider per side
• Maximum Tire Size: 35”
  37” tires may be accommodated with fiberglass trimming or custom fender modifications.
• Maximum Backspacing: 5.75”
• Minimum Rim Size: 17”

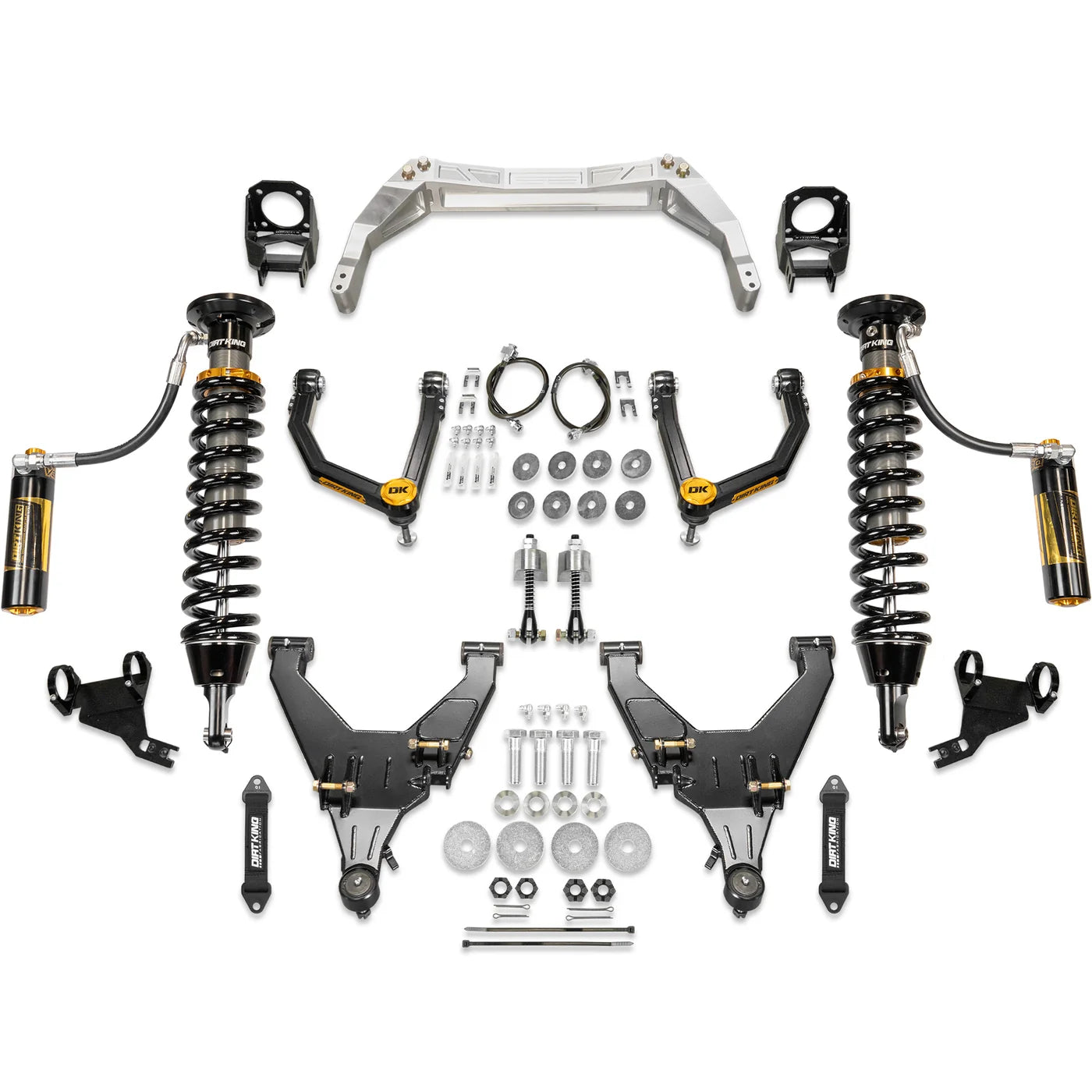

Components:

• Billet upper control arms
• Boxed lower control arms
• Limit straps
• Weld-on adjustable limit strap mounts
• 17-4 stainless steel tie rod extensions
• DOT approved extended brake lines
• Grade 8 mounting hardware
• Sway bar end links
