Dirt King Long Travel Kit

Dirt King Long Travel Kit

Application:

2003-2009 Lexus GX470

2010-2023 Lexus GX460

2003-2024 Toyota 4Runner 2WD / 4WD

2007-2014 Toyota FJ Cruiser

Decription:

The Dirt King long travel kit was developed to drastically improve the vehicles off-road handling without compromising its day to day driving characteristics. This suspension system allows for 13.5” of travel and accepts up to a 35” tire. The kit is compatible with 2WD models and 4WD models along with the purchase of extended axle shafts. Our upper and lower arms are designed with 1” stainless steel uniballs for the outer pivots instead of ball joints for strength and increased articulation. Compared to the competition we’ve gained several inches of ground clearance by mounting the lower arms in the factory location instead of below it. This kit is CAD designed, thoroughly tested, and 100% made in America resulting in a product we’re proud to put our name on!

*Please contact Dirt King if you plan on installing this kit with lift spindles or a bracket lift.
*Front fiberglass required.
*This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.

Features:

• Bolt on application, minimal modifications required
• Utilizes Probearing bearings
• 4130 chromoly uniball cups
• Choice of  ¾” heims or poly bushings for the UCA’s
• Delrin bushings for the LCA’s
• Zinc plated inner bushing sleeves
• Grease fittings for easy servicing
• 3/16" and 1/8” boxed plate construction
• Internally ribbed with extrusions for weight reduction
• Bump stop plating
• Limit strap tabbing
• Bypass Tabbing

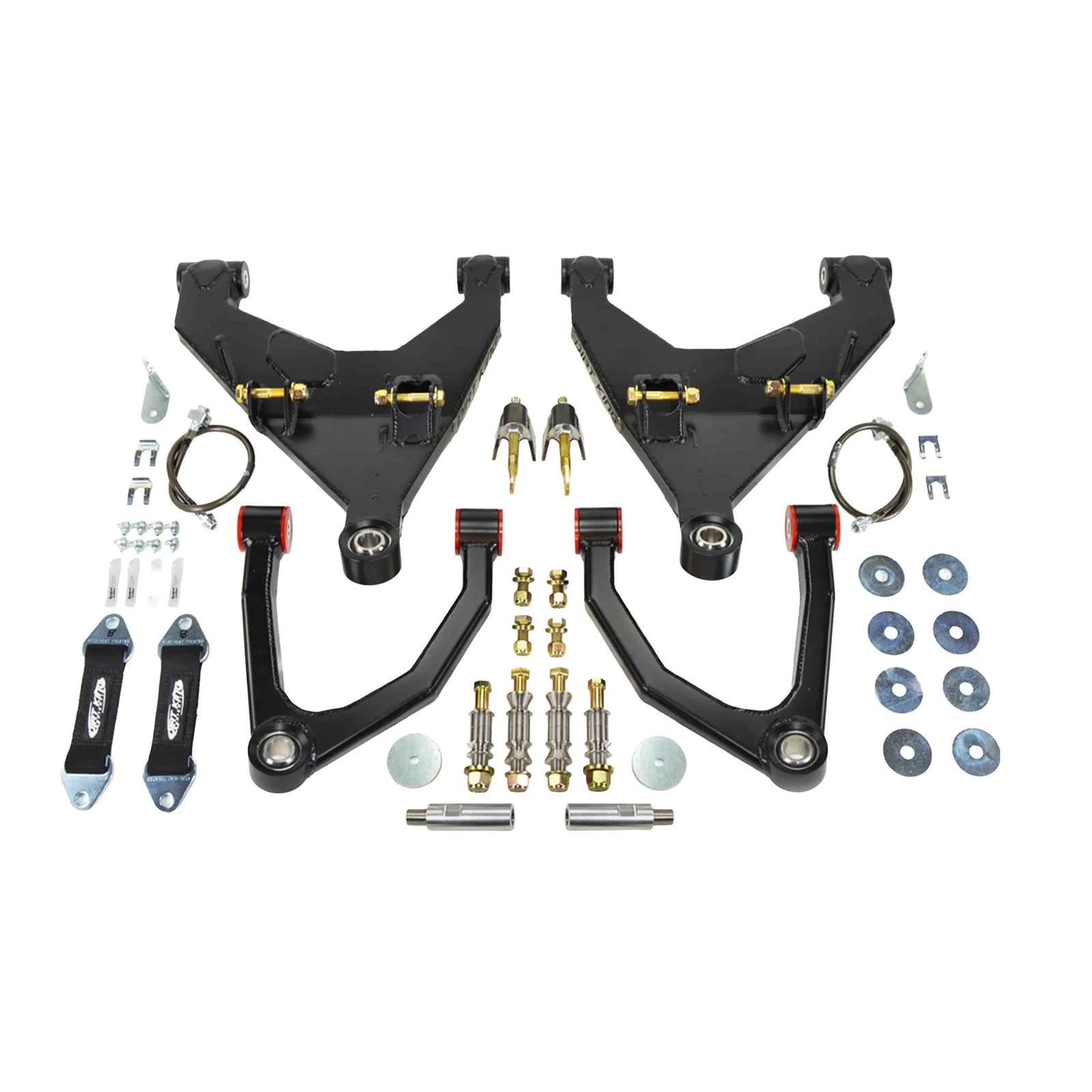

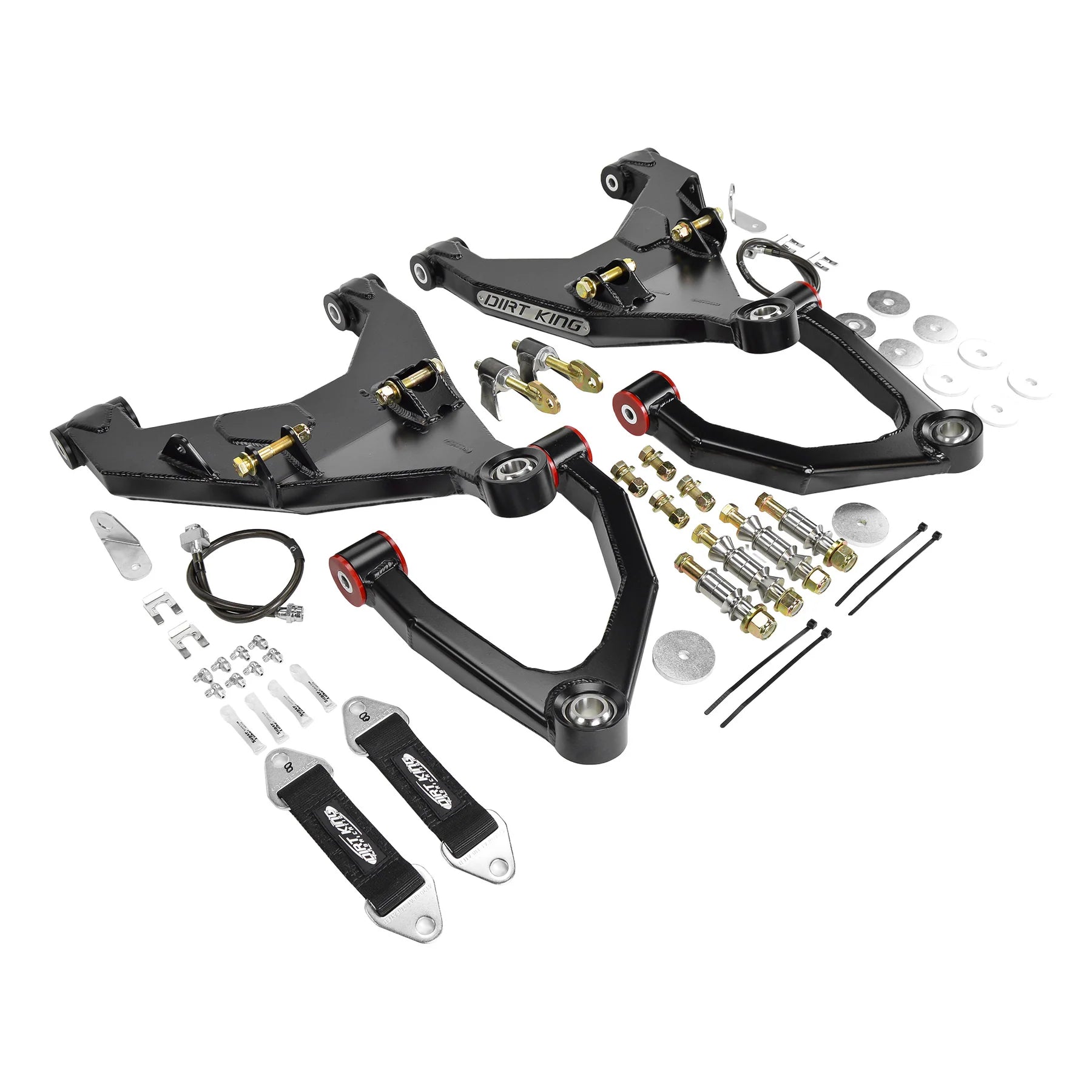

Components:

• Boxed plate upper control arms
• Boxed plate lower control arms
• 8" quad wrapped limit straps
• Weld on adjustable limit strap mounts
• 17-4 stainless steel misalignment spacers
• 17-4 stainless steel tie rod extensions
• DOT approved extended brake lines
• Grade 8 mounting hardware
• Zinc plated bushing washers
• Bump stop spacers
