Dobinsons MRR 3 Way Adjustable Monotube Reservoir Struts

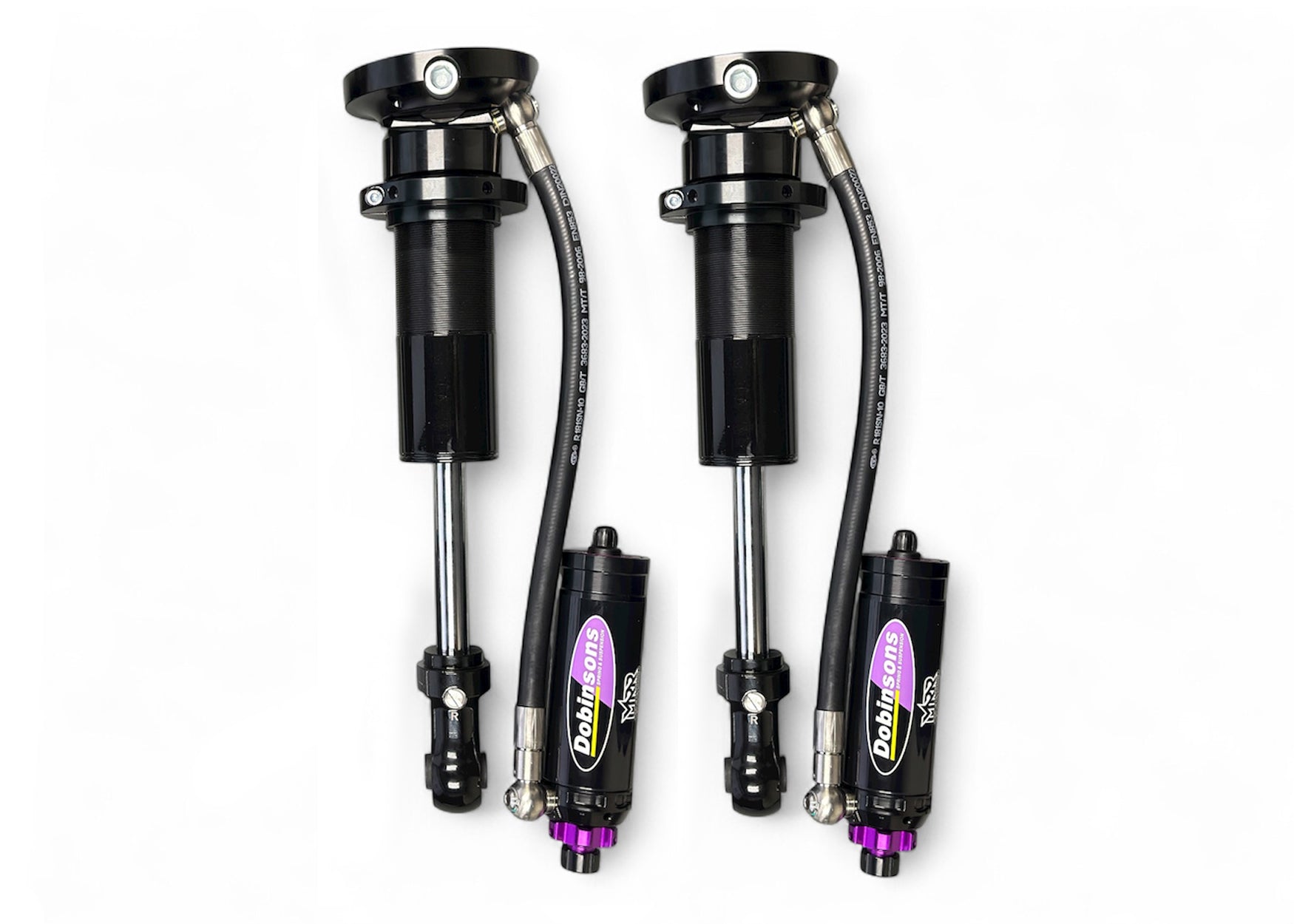

DOBINSONS MRR 3 WAY ADJUSTABLE MONOTUBE RESERVOIR STRUTS 2.6″ (INVERTED STYLE) – MRA45-A530

(2) MRA45-A530

Application:

2022+ Nissan Frontier Titan Swap

Overview:

Dobinsons MRR 3-Way Adjustable 2.6″ Shocks are high-performance suspension components designed for serious off-roaders who demand maximum control, comfort, and durability. With triple adjustability and premium materials, they offer fully customizable ride tuning to match any terrain or driving style.

Important Fitment Note: These shocks are specifically designed for vehicles performing a Titan swap. They will NOT work with OEM upper and lower control arms.

Key Features:

• 3-Way Damping Adjustment:
  Fine-tune your suspension with high-speed compression (10-stage), low-speed compression (20-stage), and rebound (15-stage) adjustments for total control on and off-road.

• Remote Reservoir System:
  Large 60mm aluminum remote reservoirs increase oil capacity for better cooling and consistent performance over long, rough drives.

• Heavy-Duty Build:
  2.6″ (66mm) shock body, polished shock shaft, CNC-machined race piston, and 3mm DOM tubing deliver serious strength and durability.

• Rebuildable Design:
  Built to last with full rebuild capability for long-term value and performance.

• Advanced Sealing System:
  Uses a 3-stage FKM HNBR seal to withstand heat, pressure, and harsh environments.

• All Rubber Bushings:
  Designed with high-quality rubber bushings for quieter operation, better vibration isolation, and improved ride comfort compared to harsh polyurethane alternatives.

Notes:

• For Titan swapped vehicles that have already sourced the other necessary parts such as Titan LCAs, Titan UCAs, extended axles, etc.

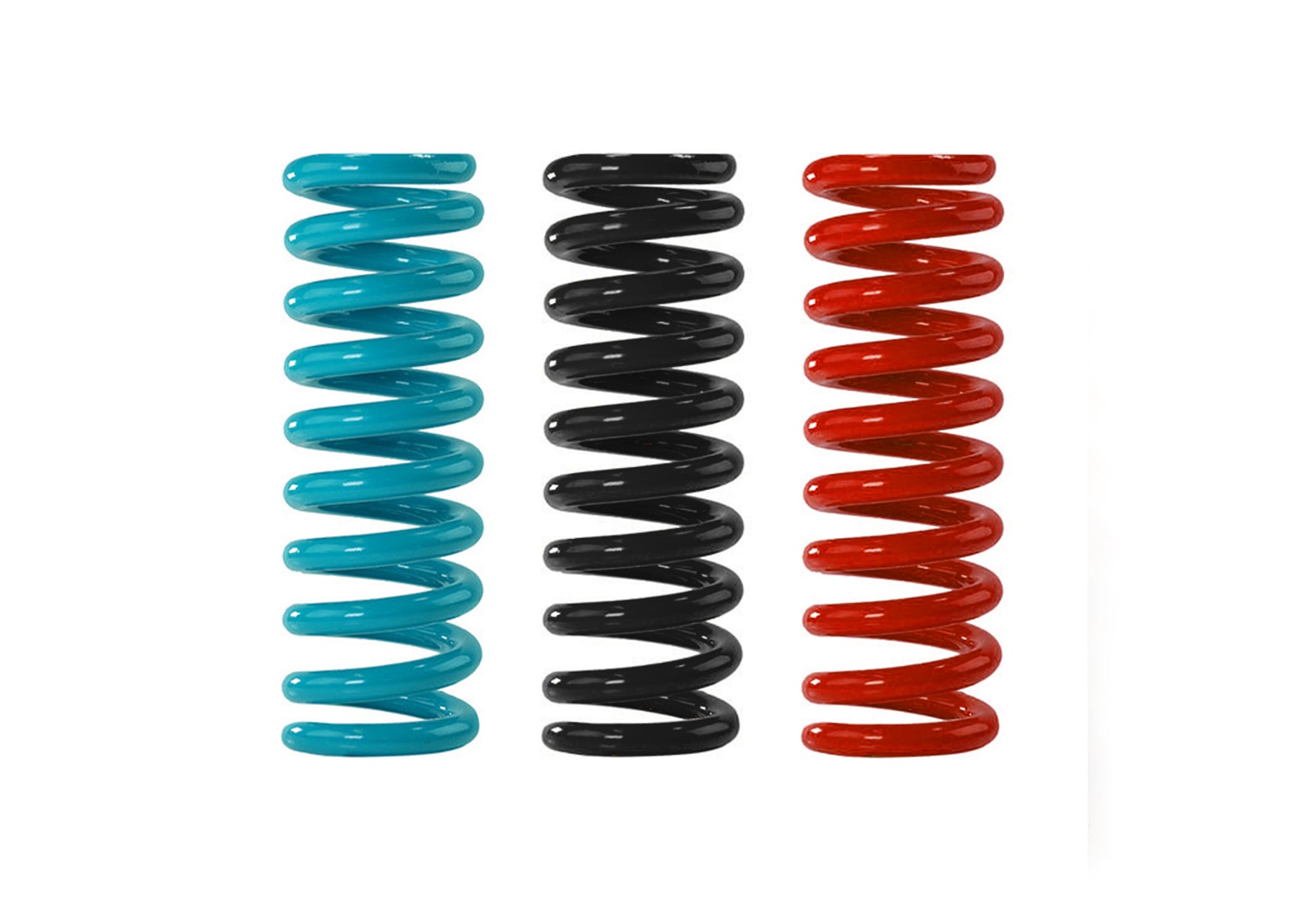

Coil Spring Options:

• C92-3012500 (Used for stock load vehicles)
• • Inner Diameter – 3.0″
  • Length – 12″
  • Spring Rate – 500lb/in
• C92-3013550 Specs (Used for vehicles with 110-220lb added load)
• • Inner Diameter – 3.0″
  • Length – 13″
  • Spring Rate – 550lb/in
