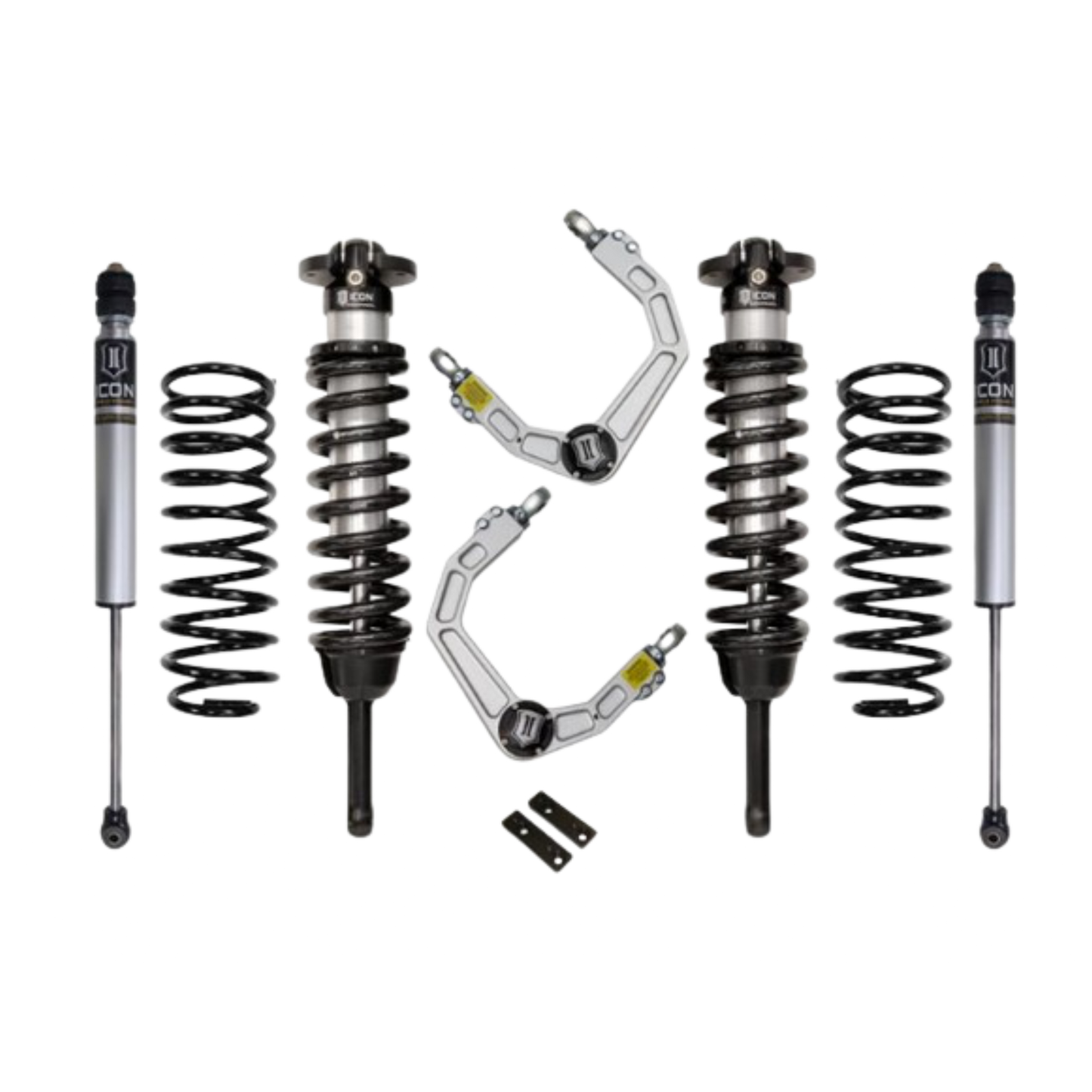

Icon | Stage 1 | 0-3.5" Lift Kit | W/Billet UCA | (2010-23) Toyota 4Runner, (2010-14) Toyota FJ Cruiser | K53062
$3,250.84$3,612.04
N537476
Quality Guarantee
Same Day Processing
Easy Returns

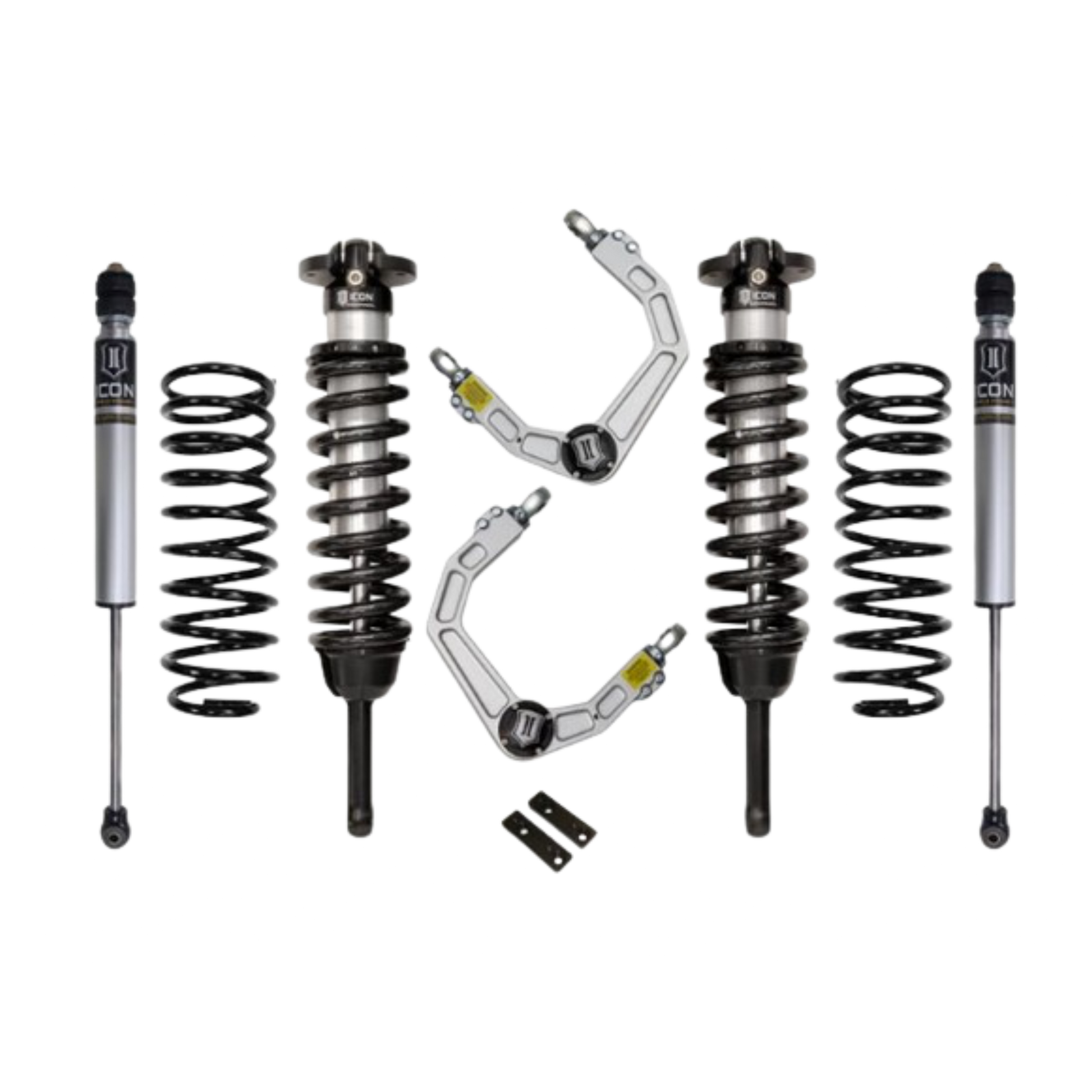

Icon 0-3.5" Stage 2 Lift Kit W/Billet UCA, Toyota 4Runner or Toyota FJ Cruiser
K53062
Application:
2010-2023 Toyota 4Runner
2010-2014 Toyota FJ Cruiser
Features and Benefits:
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers provide 0-3.5" of front lift height
- Extended Travel coilovers matched with ICON UCA provides increased front droop travel
- Billet aluminum upper control arms for added strength, durability, adjustability, and improved alignment geometry
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
- Bolt-on system means no cutting or welding necessary for install
Tech Info:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only.
- APPLICATION NOTE #30: An adjustable track bar is recommended to realign the axle but not required.
- APPLICATION NOTE #47: 700lb/in Expedition Coil available for heavier equipped vehicles.
- APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle.
- APPLICATION NOTE #102: KDSS equipped require rear track bar 54200.
- APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
