Icon | Stage 4 | 0-3.5" Lift Kit | W/Billet UCA | (2010-23) Toyota 4Runner, (2010-14) Toyota FJ Cruiser | K53064

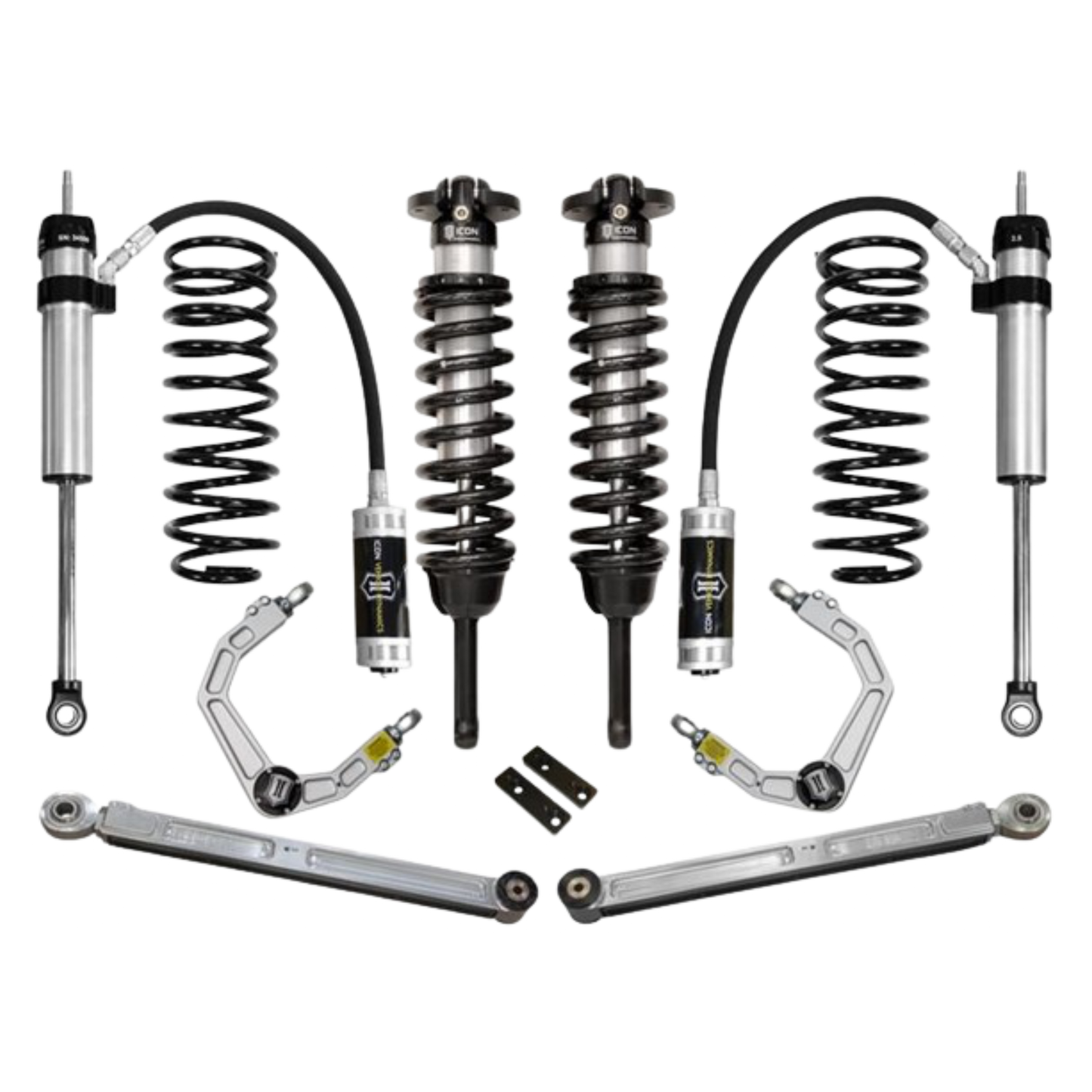

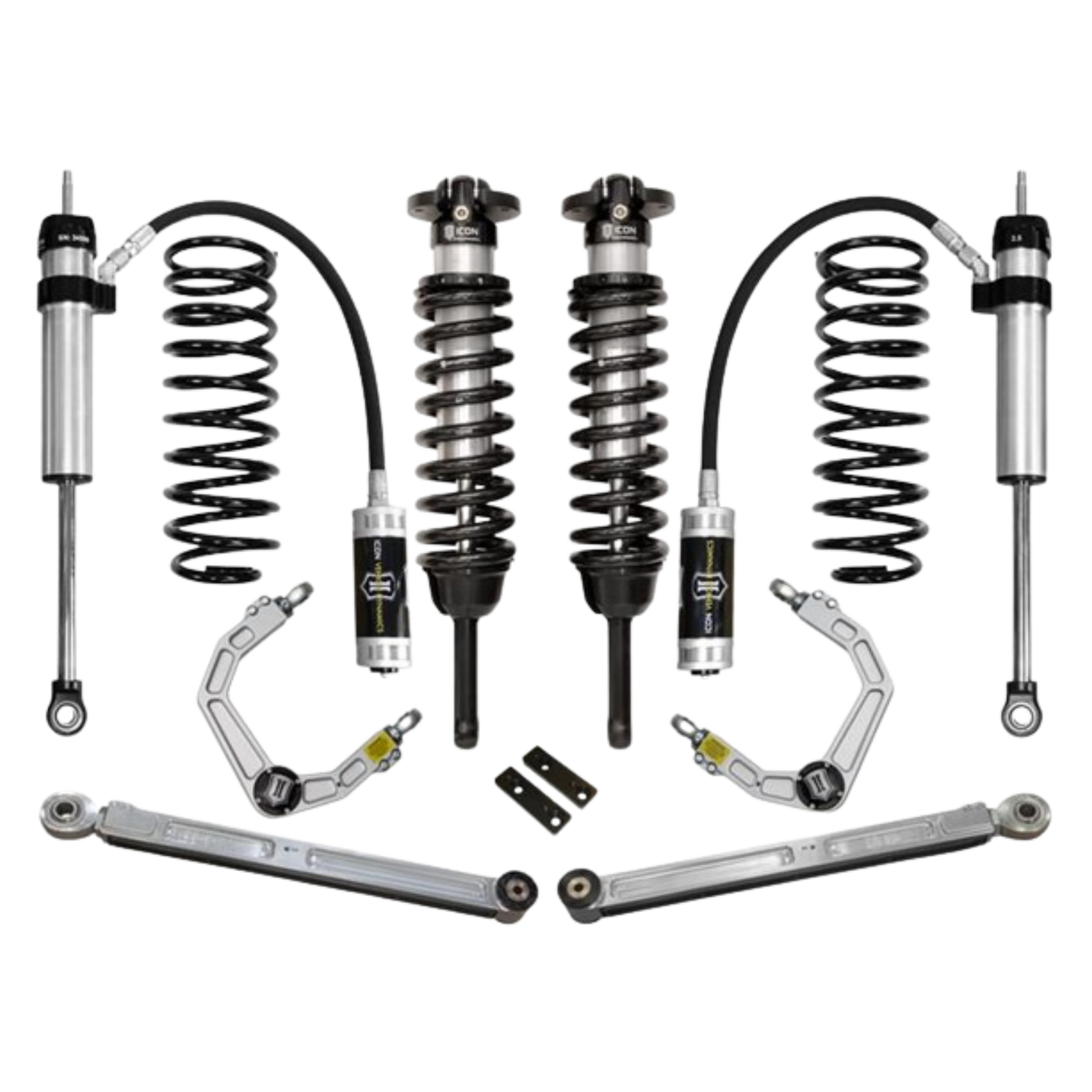

Icon 0-3.5" Stage 4 Lift Kit W/Billet UCA, 2010-2023 Toyota 4Runner or 2010-2014 Toyota FJ Cruiser

K53064

Application:

2010-2023 Toyota 4Runner

2010-2014 Toyota FJ Cruiser

Features and Benefits:

• Increased wheel travel and ride quality over stock
• Bolt-on system means no cutting or welding necessary for install
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers provide 0-3.5" of front lift height
• Extended Travel coilovers matched with ICON UCA provides increased front droop travel
• Billet aluminum upper control arms for added strength, durability, adjustability, and improved alignment geometry
• Billet Aluminum rear lower links offer on vehicle pinion angle adjustment
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts

Tech Info:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only.
• APPLICATION NOTE #30: An adjustable track bar is recommended to realign the axle but not required.
• APPLICATION NOTE #47: 700lb/in Expedition Coil available for heavier equipped vehicles.
• APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle.
• APPLICATION NOTE #102: KDSS equipped require rear track bar 54200.
• APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
