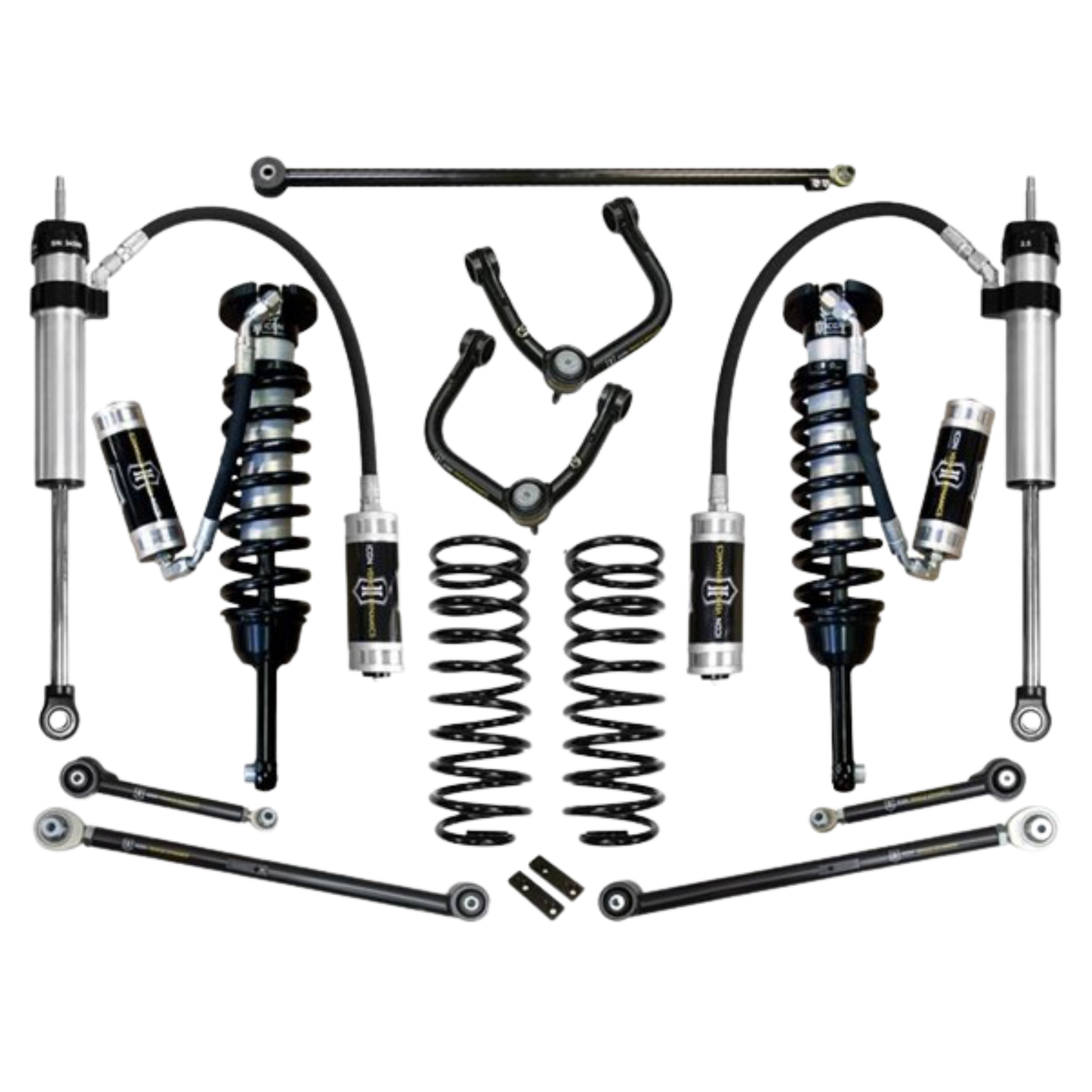

Icon | Stage 6 | 0-3.5" Lift Kit | W/Tubular UCA | (2010-23) Toyota 4Runner, (2010-14) Toyota FJ Cruiser | K53066T

Icon 0-3.5" Stage 6 Lift Kit W/Tubular UCA, 2010-2023 Toyota 4Runner or 2010-2014 Toyota FJ Cruiser

K53066T

Application:

2010-2023 Toyota 4Runner

2010-2014 Toyota FJ Cruiser

Features and Benefits:

• Increased wheel travel and ride quality over stock
• Adjustable rear track bar proper rear axle placement under vehicle
• Bolt-on system means no cutting or welding necessary for install
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers provide 0-3.5" of front lift height
• Extended Travel remote reservoir coilovers matched with ICON UCAs provide increased front droop travel
• Tubular upper control arms for added strength, durability, and improved alignment geometry
• Tubular upper and lower rear links offer increased strength, improved geometry, and pinion angle adjustment
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts

Tech Info:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only.
• APPLICATION NOTE #35: Remote reservoir mounting brackets may interfere with aftermarket bumper mounts/windshield washer bottles.
• APPLICATION NOTE #46: Suspension system compatible with KDSS. Front sway bar relocation brackets not used for KDSS equipped vehicles. Certain years require trimming for front reservoir bracket fitment.
• APPLICATION NOTE #47: 700lb/in Expedition Coil available for heavier equipped vehicles.
• APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle.
• APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
