Icon | 1.25-3.5" Lift | External Reservoir Coilovers | 2022-2024 Tundra | 3-4.5" Lift | 23-24 Sequoia | 58770

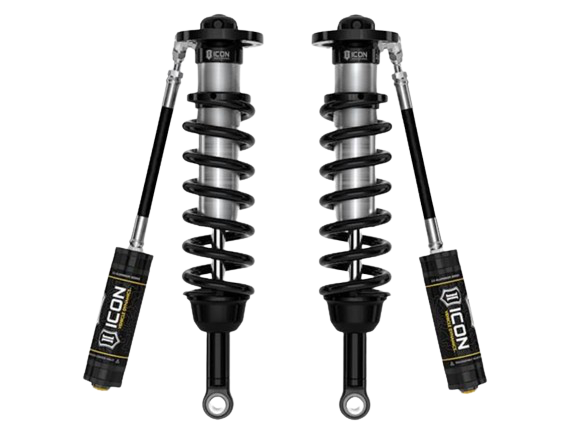

Icon 1.25-3.5" Lift 2022-2024 Tundra, 3-4.5" Lift 23-24 Sequoia, External Reservoir Coilovers

58770

Application:

2022-2024 Toyota Tundra

2023-2024 Toyota Sequoia

FEATURES & BENEFITS:

• Increased wheel travel and improved ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Adjustable up to 1.25-3.5" of front lift height over stock (Tundra) or 3-4.5" of lift over stock (Sequoia)
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable
• 100% Bolt-on - no drilling, cutting or welding necessary for installation

TECH INFO:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5" w/ 5.75" Backspace / 25mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
• APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
• APPLICATION NOTE #146: Tundra Sr5 Equipped With Trd Sport Package Lift Range Will Be 2.25-4.5"
• APPLICATION NOTE #148: ICON Does Not Recommend Lifting Above 2.25" (Tundra)/3.75" (Sequoia) Without An ICON Upper Control Arm, Failure To Do So Can Result In Improper Wheel Alignment And Cause Damage To Front Axles On 4Wd Models
• APPLICATION NOTE #149: For 4Wd Models Without Trd Off-Road Package ICON Recommends Using ICON Diff Drop (Part# 55156) Or Using Toyota Trd Axles (Part# 434200C020 Driver / 434100C020 Pass). Failure To Do So Could Result In Front Axle Damage. Not Required For Trd Pro.
• TECH NOTE: If upgrading a vehicle equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional
• TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-3.5" over stock
• TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-3" over stock
• TECH NOTE: Tundra TRD Pro will have front lift height range of 0-1.75" over stock
• TECH NOTE: Most Sequoia sub-models will have front lift height range of 3.5-4.5" over stock
• TECH NOTE: Not compatible with Sequoia TRD Pro
• TECH NOTE: Tundra lift heights above 2.25" require sway bar drop bracket kit part number 55154. Required for all lift heights on Tundra TRD Pro and Sequoia.
