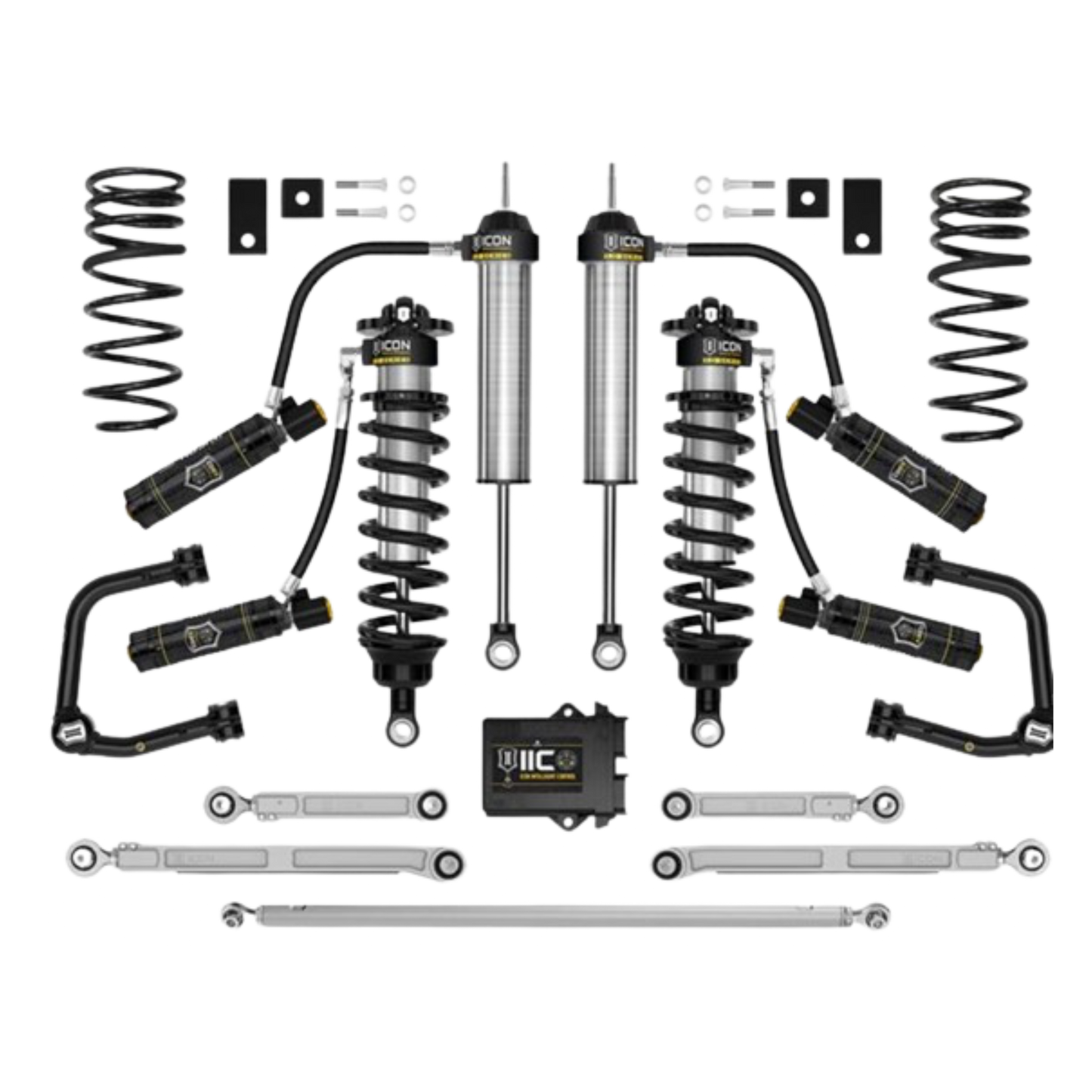

Icon | 2-3.25" | Stage 6 | 3.0" | Suspension System W/Tubular UCAs | (22-24) Toyota Tundra | K53216T

Icon 2-3.25" Stage 6 3.0" Suspension System Tubular 22-24 Toyota Tundra

K53216T

Features & Benefits:

• Vehicle specific design for 2022-2024 Toyota Tundra
• 3.0 Series front coilovers with ICON's multi-stage, tunable hydraulic "Bump Zone"
• Adjustable front ride heights from 2-3.25" of front lift over stock when used with included tubular UCAs
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift (non-TRD models)
• On-vehicle adjustable rear track bar properly centers rear axle while also improve rear suspension performance
• 3.0 Series rear remote reservoir shocks provide maximum performance, 20% increase in wheel travel, and balanced tune with coilovers
• All ICON shock absorbers are fully rebuildable and re-tunable

Tech Info:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5" w/ 5.75" Backspace / 25mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
• APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
• APPLICATION NOTE #142: Not Compatible With Tundras Equipped With Load-Leveling Rear Height Control Air Suspension.
• APPLICATION NOTE #149: For 4Wd Models Without Trd Off-Road Package ICON Recommends Using ICON Diff Drop (Part# 55156) Or Using Toyota Trd Axles (Part# 434200C020 Driver / 434100C020 Pass). Failure To Do So Could Result In Front Axle Damage. Not Required For Trd Pro.
• TECH NOTE: If upgrading a Tundra equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional
• TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 2-3.25" over stock
• TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 2-2.75" over stock
• TECH NOTE: Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 3-4.5" over stock
• TECH NOTE: Tundra TRD Pro will have lift height range of 0-1.5" over stock
• TECH NOTE: Included rear springs net .5" of rear lift on a Tundra without TRD Off-Road or TRD Sport suspension packages. A Tundra equipped with TRD Off-Road or TRD Sport packages and TRD Pro will net 0" of lift, remaining at stock height in the rear. If taller rear ride heights are desired, consider ICON part # K53216TS.
• TECH NOTE: Tundras equipped with automatic leveling headlights also require part number 55153

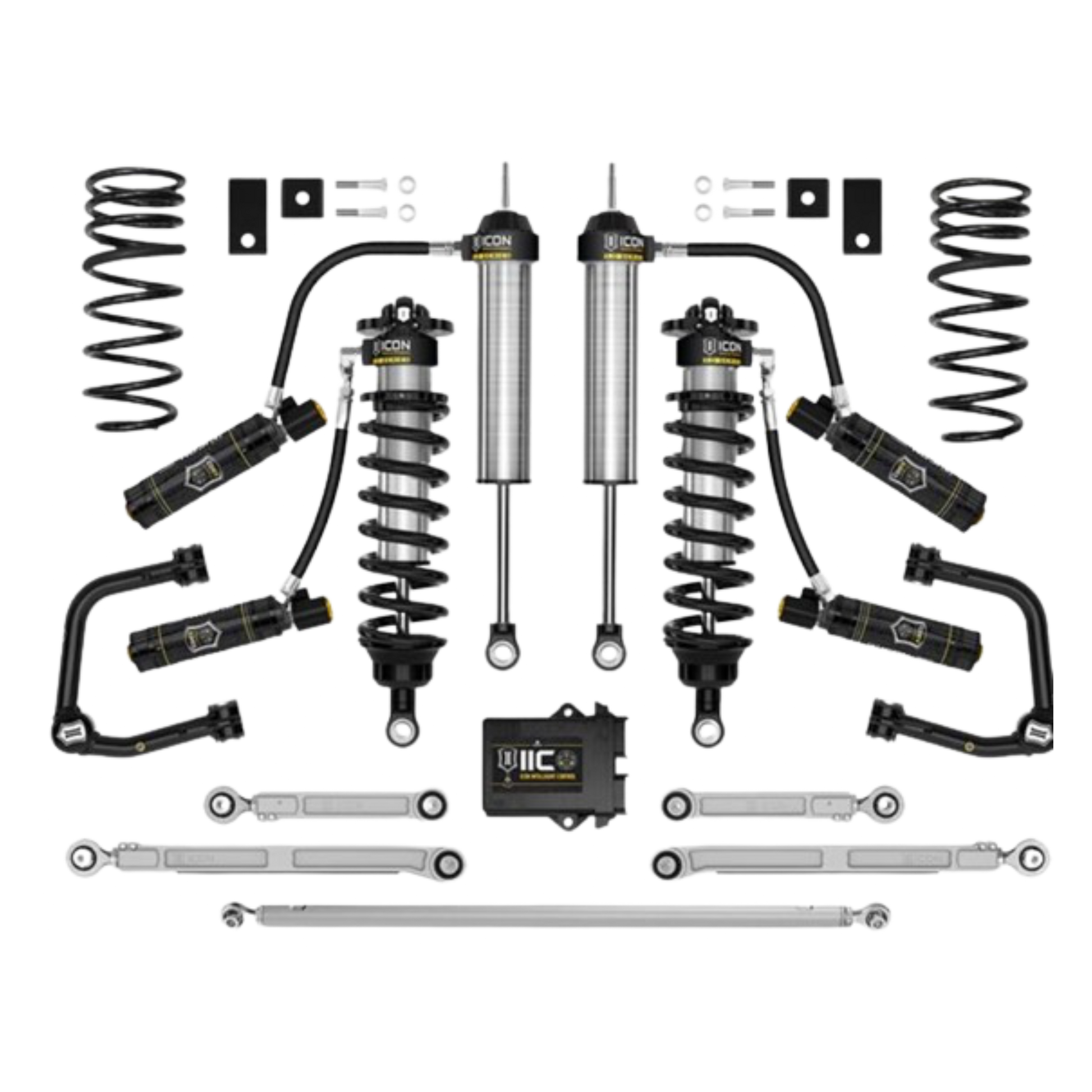

System Components:

• 58775E (QTY: 1) | 22-24 TUNDRA/24 SEQUOIA 3.0 VS RR CDEV COILOVER KIT
• 58461DJ (QTY: 1) | 22-24 TUNDRA/24 SEQUOIA TUBULAR UCA DJ PRO KIT
• 55154 (QTY: 1) | 22-24 TUNDRA/24 SEQUOIA SWAY BAR DROP KIT
• 54002 (QTY: 1) | 22-24 TUNDRA/24 SEQUOIA BILLET REAR LOWER LINK KIT
• 54102 (QTY: 1) | 22-24 TUNDRA/24 SEQUOIA BILLET REAR UPPER LINK KIT
• 54202 (QTY: 1) | 22-24 TUNDRA/24 SEQUOIA BILLET REAR ADJ TRACK BAR KIT
• 53508 (QTY: 1) | 22-24 TUNDRA/24 SEQUOIA IIC INSTALL KIT
• 51210 (QTY: 1) | 22-24 TUNDRA .5" LIFT TRIPLE RATE REAR COIL SPRING KIT
• 57845EP (QTY: 1) | 22-24 TUNDRA/24 SEQUOIA REAR 3.0 VS RR CDEV PAIR
