ICON 2025-2026 Toyota 4Runner 4WD, 1.25-3" Lift, Stage 13 Suspension System, Billet

Applications:

2025-2026 Toyota 4Runner

Product Overview:

Key Features:

• Vehicle specific tuned 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable 2.5 Series coilovers provide 1.25-3" front lift height over stock
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Dual rate rear coil springs improve performance and ride quality while providing .75" of rear lift
• Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

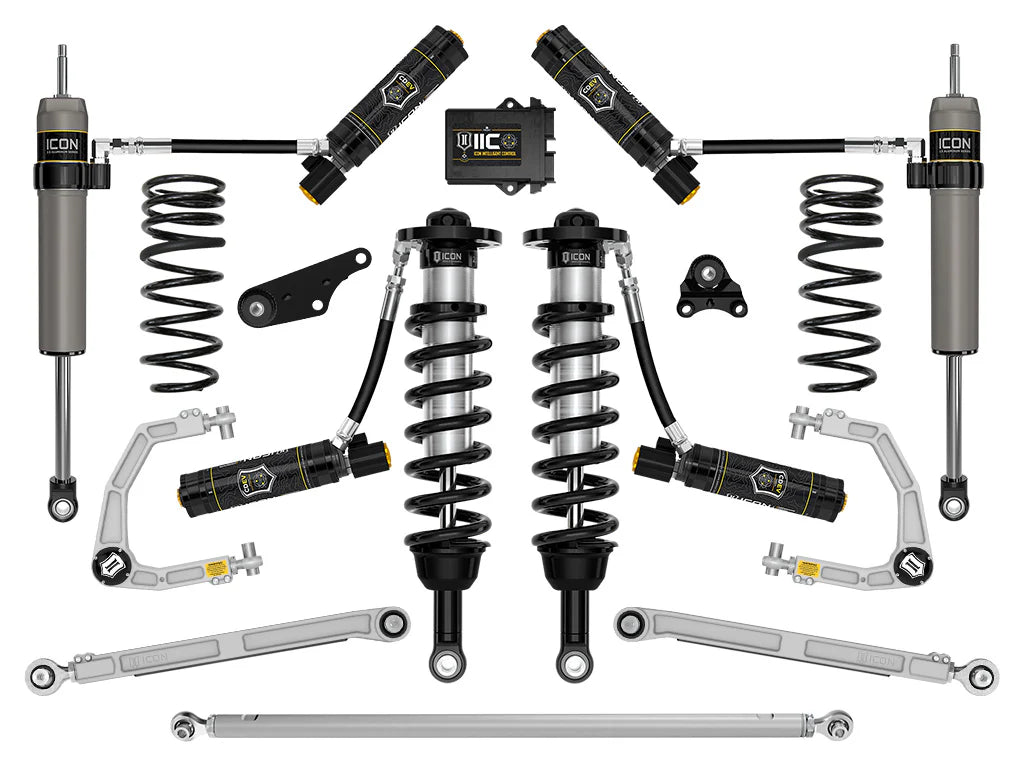

Components:

• 58795E (qty: 1) | 25 4RUNNER 4WD FRONT 2.5 VS RR CDEV COILOVER KIT
• 58552DJ (qty: 1) | 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R BILLET UCA DJ PRO KIT
• 55160 (qty: 1) | 24-25 TACOMA 4WD/24-25 LC250/25 T4R 4WD FRONT DIFF DROP KIT
• 52753 (qty: 1) | 25 4RUNNER .75" DUAL RATE REAR SPRING KIT
• 53509 (qty: 1) | 24-25 TACOMA/24-25 LC250/25 4RUNNER IIC INSTALL KIT
• 54003 (qty: 1) | 24-25 LC250/24-25 GX550/25 4RUNNER BILLET REAR LOWER LINK KIT
• 54202 (qty: 1) | 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACO/LC250/GX550/25 T4R BLT ADJ TRACK BAR
• 57872EP (qty: 1) | 25 4RUNNER 0-3" REAR 2.5 VS RR CDEV PAIR
