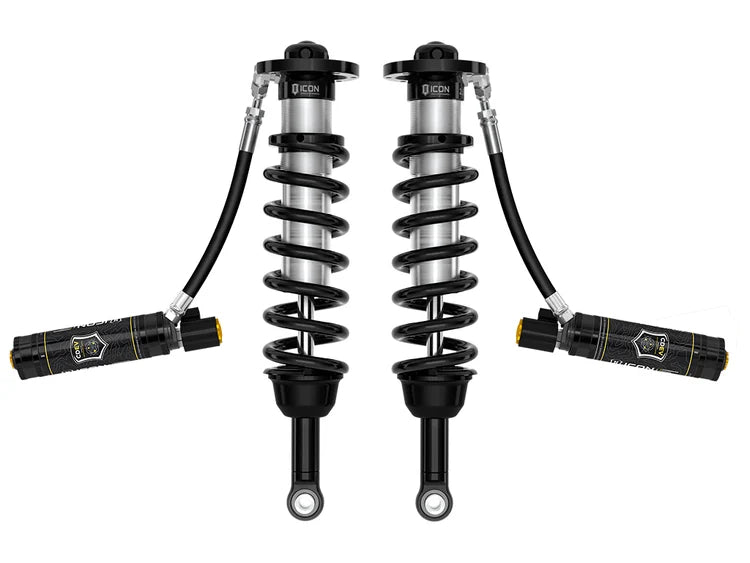

    ICON 2025+ Toyota 4Runner 2WD, 1.25-3" Lift, Front, 2.5 Series Coilover Kit, Remote Reservoir w/ CDEV

    Icon Vehicle Dynamics

    ICON 2025+ Toyota 4Runner 2WD, 1.25-3" Lift, Front, 2.5 Series Coilover Kit, Remote Reservoir w/ CDEV

    $2,474.96$2,749.95

    58796E

    Quality Guarantee
    Same Day Processing
    Easy Returns

    ICON 2025+ Toyota 4Runner 2WD, 1.25-3" Lift, Front, 2.5 Series Coilover Kit, Remote Reservoir w/ CDEV

    58796E


    Applications:

    2025+ Toyota 4Runner

    Overview

    ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir CDEV front coilover shocks are an incredible upgrade for the front end of the 2025-2026 Toyota 4Runner 2WD. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific valving, their large 2.5” shock body with increased piston surface area over stock components, and their optimized extended length taylored specifically for 2WD models, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV's hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with 2.5 Aluminum Series CDEV rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 6th Gen Toyota 4Runner.

    Key Features

    • Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
    • Vehicle specific shock length optimized for 2WD models yields maximum front wheel travel
    • Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
    • 2.5" diameter shock bodies with remote reservoirs offer increased heat capacity and improved cooling for consistent performance
    • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
    • ICON engineered coil springs
    • 6061 Aircraft grade aluminum CNC machined components
    • Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
    • FK rod end bearings for extended longevity and minimal deflection
    • Fully rebuildable and re-tunable

    Technical Notes

    • OEM Wheels & Tires Fitment: Yes
    • Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
    • Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
    • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
    • APPLICATION NOTE #4: Advertised lift heights based on models equipped with gasoline engine
    • APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
    • APPLICATION NOTE #150: Shocks are fully serviceable
    • APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
    • APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
    • APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control App
    • APPLICATION NOTE #202: ICON Delta Joint Pro front upper control arms are recommended to maintain proper wheel alignment above 2" of lift
    • APPLICATION NOTE #203: Also requires installation of applicable IIC kit and CDEV rear shocks
    • APPLICATION NOTE #232: Only fits 2WD models. Installation onto 4WD models will result in damage to front axles.

    Vehicle Compatibility

    Confirm this part fits your vehicle before ordering
