Icon | 6" Lift | Stage 8 Suspension System | W/Tubular Upper Control Arms | Toyota Tundra (2022-2024) | K53278T

Icon 6" Lift Stage 8 Suspension System With Tubular Upper Control Aarms 2022-2024 Toyota Tundra

K53278T

FEATURES & BENEFITS:

• 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• ICON's Compression Damping Electronic Valve (CDEV) technology allows for in vehicle adjustment of compression damping settings and active adjustment via IIC
• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make on-the-fly, near instantaneous compression damping adjustments on CDEV-equipped shocks
• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
• Maintains factory track width
• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
• Adjustable front ride heights from 5-6" of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
• Tubular UCAs with Delta Joint Pro for added strength, durability, and caster correction for improved drivability
• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
• Single piece high-strength ductile iron steering knuckles with built-in 4" drop
• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
• Included sway bar drop brackets reduce bind in OE sway bar links
• Front and rear heavy-duty bump stop brackets
• High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
• ICON engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving
• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

TECH INFO:

• OEM Wheels & Tires Fitment: No
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
• APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
• APPLICATION NOTE #142: Not Compatible With Tundras Equipped With Load-Leveling Rear Height Control Air Suspension.
• APPLICATION NOTE #153: Not Compatible With Adaptive Variable Suspension (Avs) Equipped Vehicles
• APPLICATION NOTE #155: May Require Recalibration Of Toyota Safety Sense System After Install
• TECH NOTE: Requires minimum of 20" diameter wheels
• TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 5-6" over stock.
• TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 4.5-5.5" over stock.
• TECH NOTE: Tundra SR5 with TRD Sport package will have front lift height range of 6-7" over stock.
• TECH NOTE: Tundra TRD Pro will have front lift height range of 3.25-4.25" over stock.
• TECH NOTE: Provides 3" of rear lift on a Tundra equipped with TRD Off-Road or TRD Sport suspension packages and TRD Pro. A Tundra without TRD Off-Road or TRD Sport suspension packages will net 3.5" of rear lift.

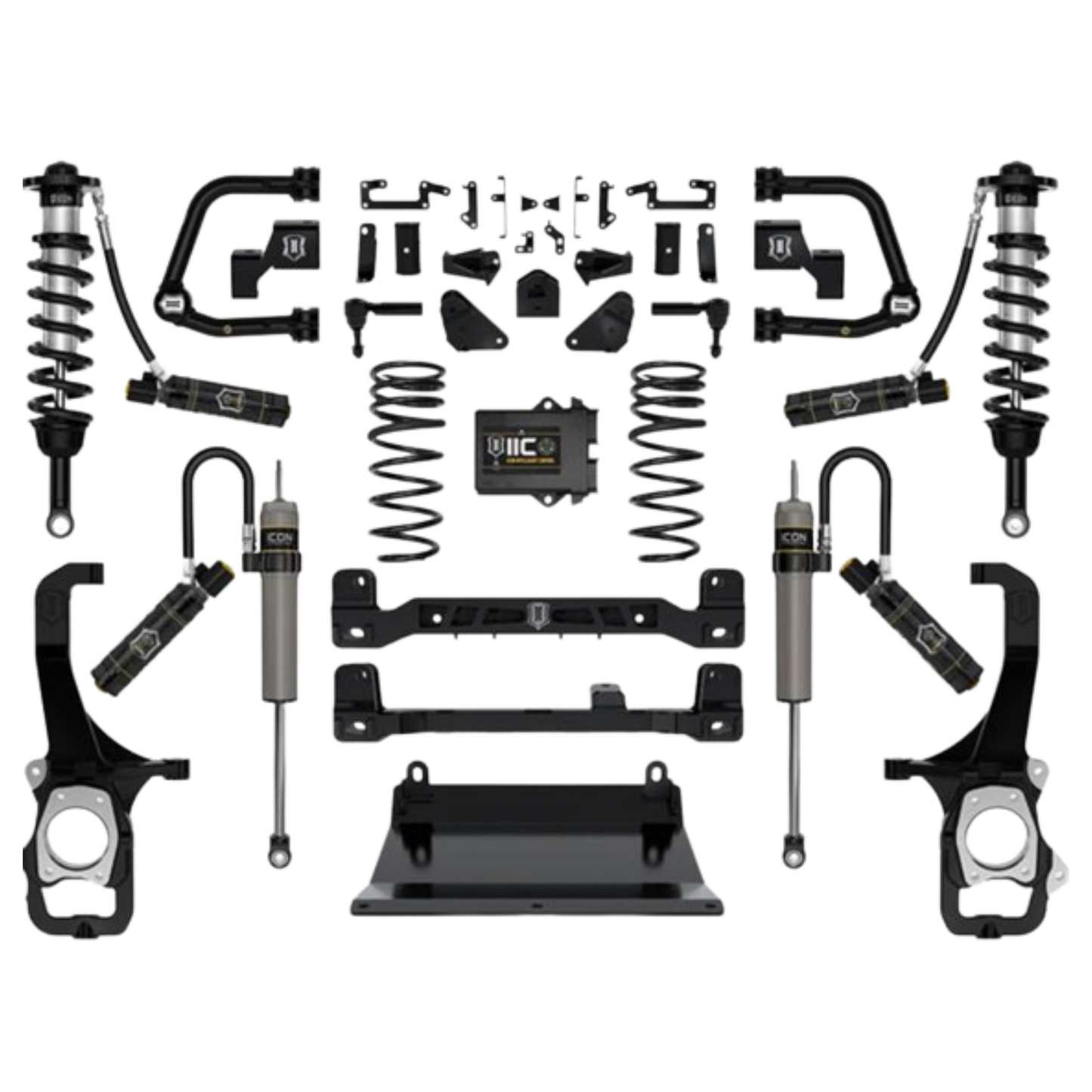

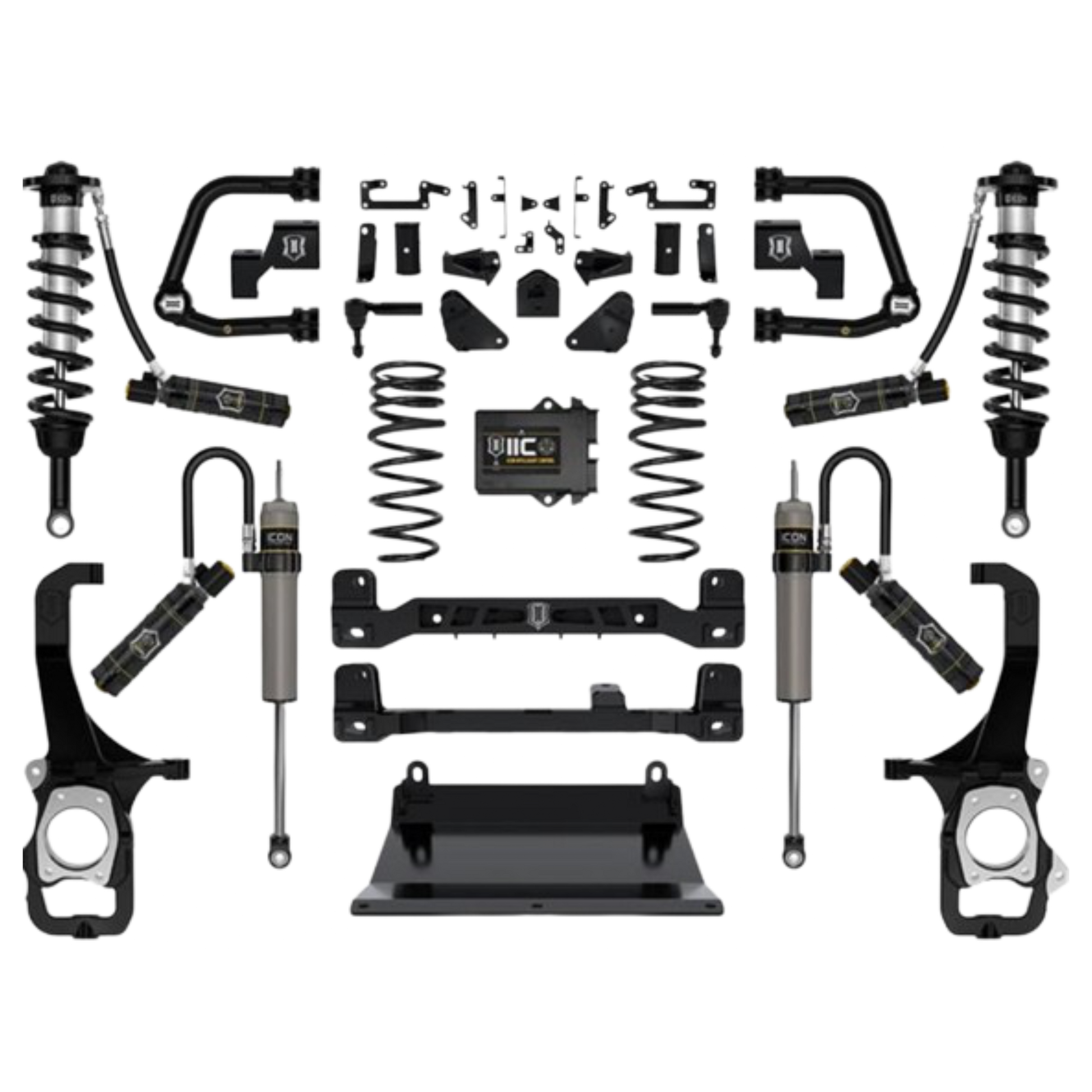

SYSTEM COMPONENTS:

• 51010 (QTY: 1) | 22-24 TUNDRA FRONT BOX KIT 1
• 51011 (QTY: 1) | 22-24 TUNDRA FRONT BOX KIT 2
• 51012 (QTY: 1) | 22-24 TUNDRA REAR BOX KIT
• 51014 (QTY: 1) | 22-24 TUNDRA FRONT KNUCKLE KIT
• 58771E (QTY: 1) | 22-24 TUNDRA 2.5 VS RR CDEV 6" COILOVER KIT
• 51013 (QTY: 1) | 22-24 TUNDRA REAR 3.5" LIFT TRIPLE RATE COIL SPRING KIT
• 58461DJ (QTY: 1) | 22-24 TUNDRA/23 SEQUOIA TUBULAR UCA DJ PRO KIT
• 51017 (QTY: 1) | 22-24 TUNDRA FRONT SKID PLATE
• 57841EP (QTY: 1) | 22-24 TUNDRA 3.5" REAR 2.5 VS CDEV RR PAIR
• 53508 (QTY: 1) | 22-24 TUNDRA/23 SEQUOIA IIC INSTALL KIT
