Icon | Stage 1 | Front | S2 Secondary Shock Upgrade System | Toyota FJ Cruiser or Toyota 4Runner | K53121

Icon Stage 1, S2 Front Secondary Shock Upgrade System, Toyota FJ Cruiser or Toyota 4Runner

K53121

Application:

2007-2014 Toyota FJ Cruiser

2010-2023 Toyota 4Runner

Features and Benefits:

• Drastically improves vehicle damping ability off-road
• Increased vehicle stability on-road
• Utilizes factory lower control arms
• Maintains OE track width
• Vehicle-specific tuned secondary shocks provide increased damping and oil volume
• 2.5 Aluminum Series secondary shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Shocks are fully rebuildable and revalveable
• Mostly bolt-on design makes for straightforward install

Tech Info:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #17: These are stand-alone kits and are not to be used in conjunction with any other aftermarket kits
• APPLICATION NOTE #35: Remote reservoir mounting brackets may interfere with aftermarket bumper mounts / windshield washer bottles.
• APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
• APPLICATION NOTE #59: Welding required - lower shock tab and steering stop.
• APPLICATION NOTE #84: ICON S2 System does not work on KDSS equipped vehicles
• APPLICATION NOTE #95: Does not work with TRD big brake kit
• TECH NOTE: Compatible with 0-3.5" of front lift over stock

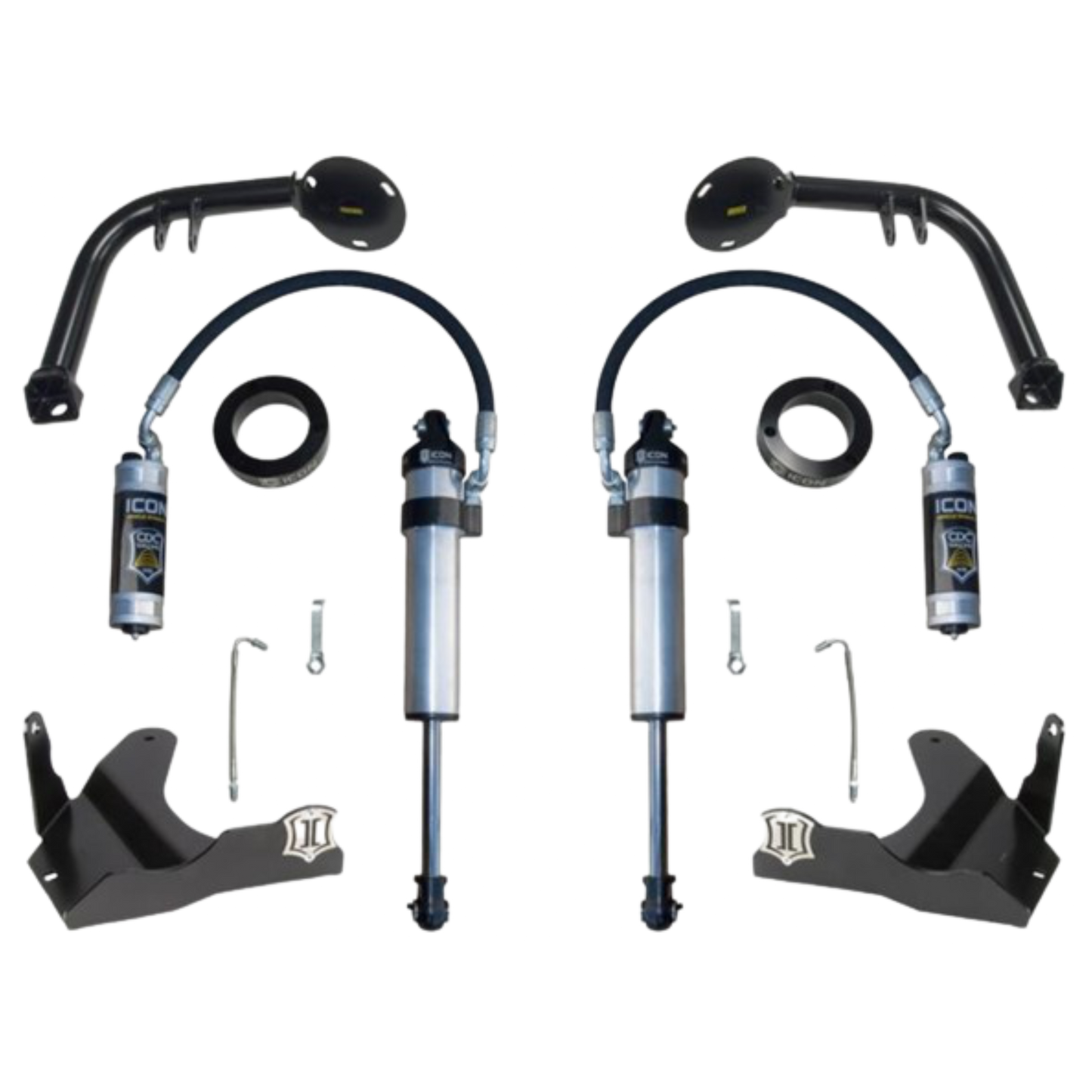

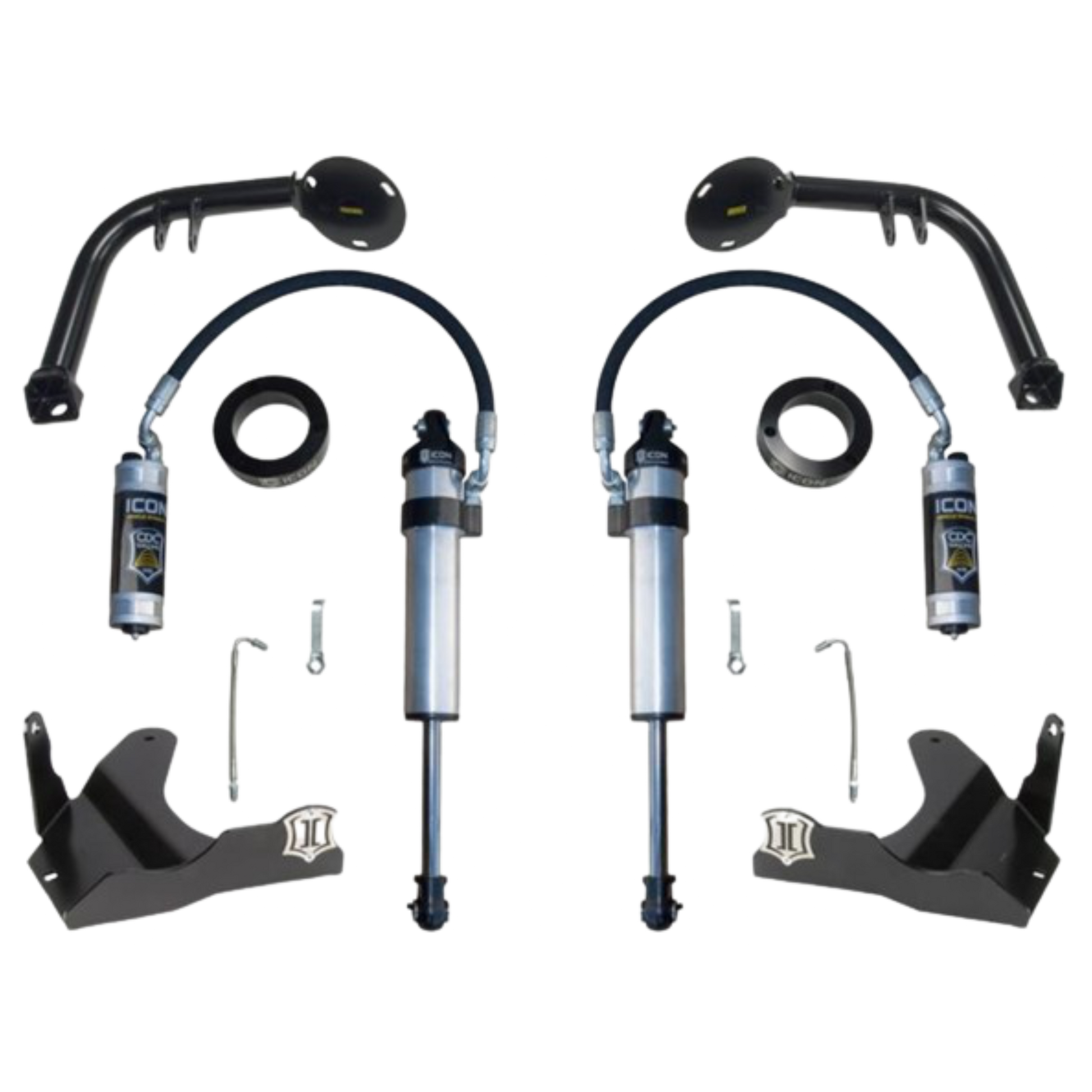

System Components:

• 56106 (QTY: 1) | 10-14 FJ/10-23 4RUNNER LCA SKID PLATE KIT
• 56102 (QTY: 1) | 07-14 FJ/03-23 4RUNNER/05-23 TACOMA S2 SHOCK HOOP KIT
• 59706P (QTY: 1) | TOYOTA S2 SECONDARY 2.5 VS RR PAIR
