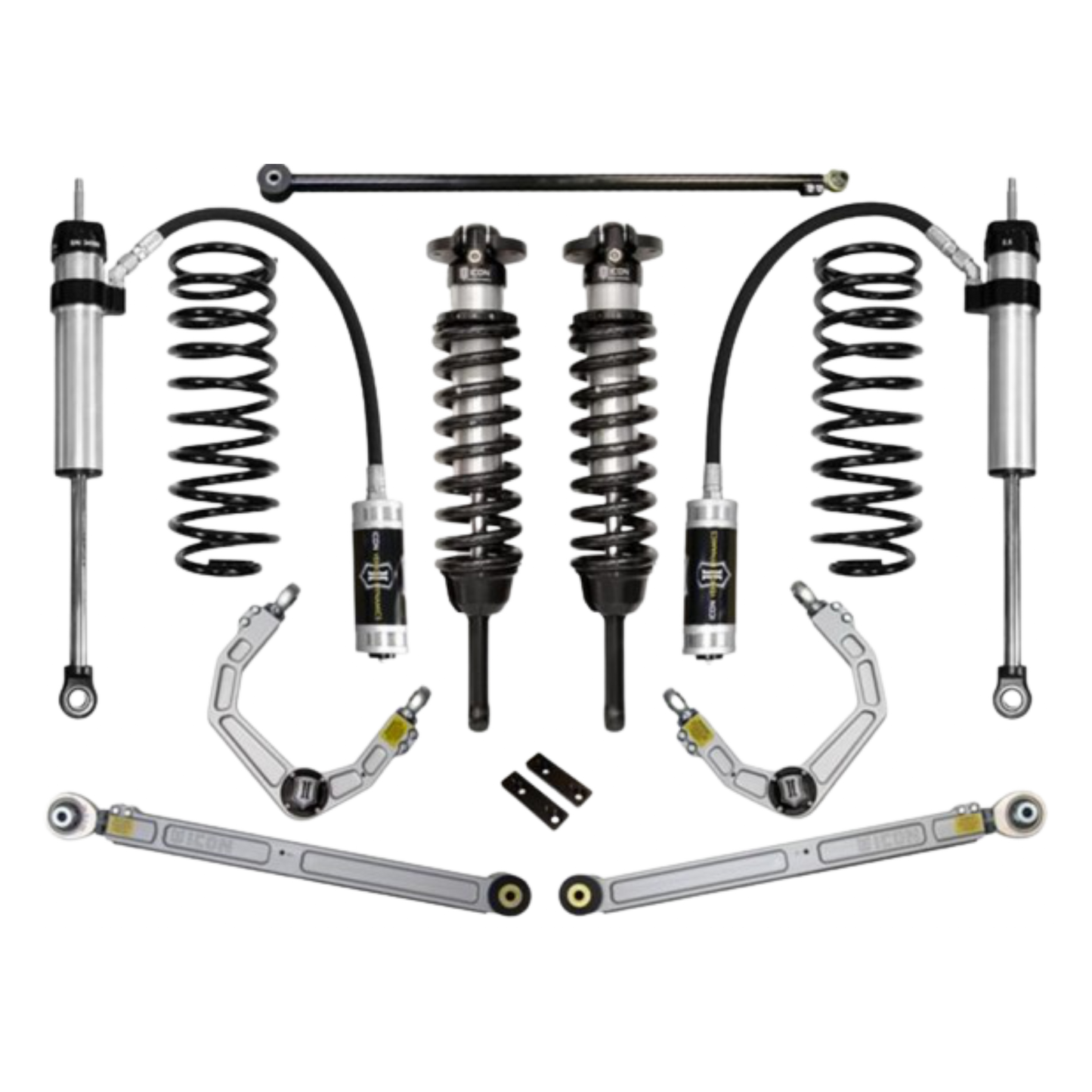

Icon | Stage 4 | 0-3.5" Lift W/Billet UCAs | (2010-2023) Lexus GX460 | K53184

Icon Stage 4 0-3.5" Lift With Billet Upper Control Arms, 2010-2023 Lexus GX460

K53184

Application:

2010-2023 Lexus GX460

Features and Benefits:

• Increased wheel travel and ride quality over stock
• 2.5 Aluminum Series rear remote reservoir shocks with 7/8" shafts
• Included adjustable rear track bar ensures KDSS compatibility
• Bolt-on system means no cutting or welding necessary for install
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers provide 0-3.5" of lift height
• ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
• Billet rear lower links offer increased strength, improved geometry, and on-vehicle pinion angle adjustment
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection

Tech Info:

• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• APPLICATION NOTE #33: Gx460 Models Equipped With Factory Rear Air Ride Suspension Require ICON Rear Coil Conversion Kit #56110
• APPLICATION NOTE #35: Remote Reservoir Mounting Brackets May Interfere With Aftermarket Bumper Mounts / Windshield Washer Bottles.
• APPLICATION NOTE #46: Suspension System Compatible With Kdss. Front Sway Bar Relocation Brackets Not Used For Kdss Equipped Vehicles. Certain Years Require Trimming For Front Reservoir Bracket Fitment.
• APPLICATION NOTE #47: 700Lb Coil Spring Available For Heavier Equipped Vehicles.
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Ships in multiple boxes

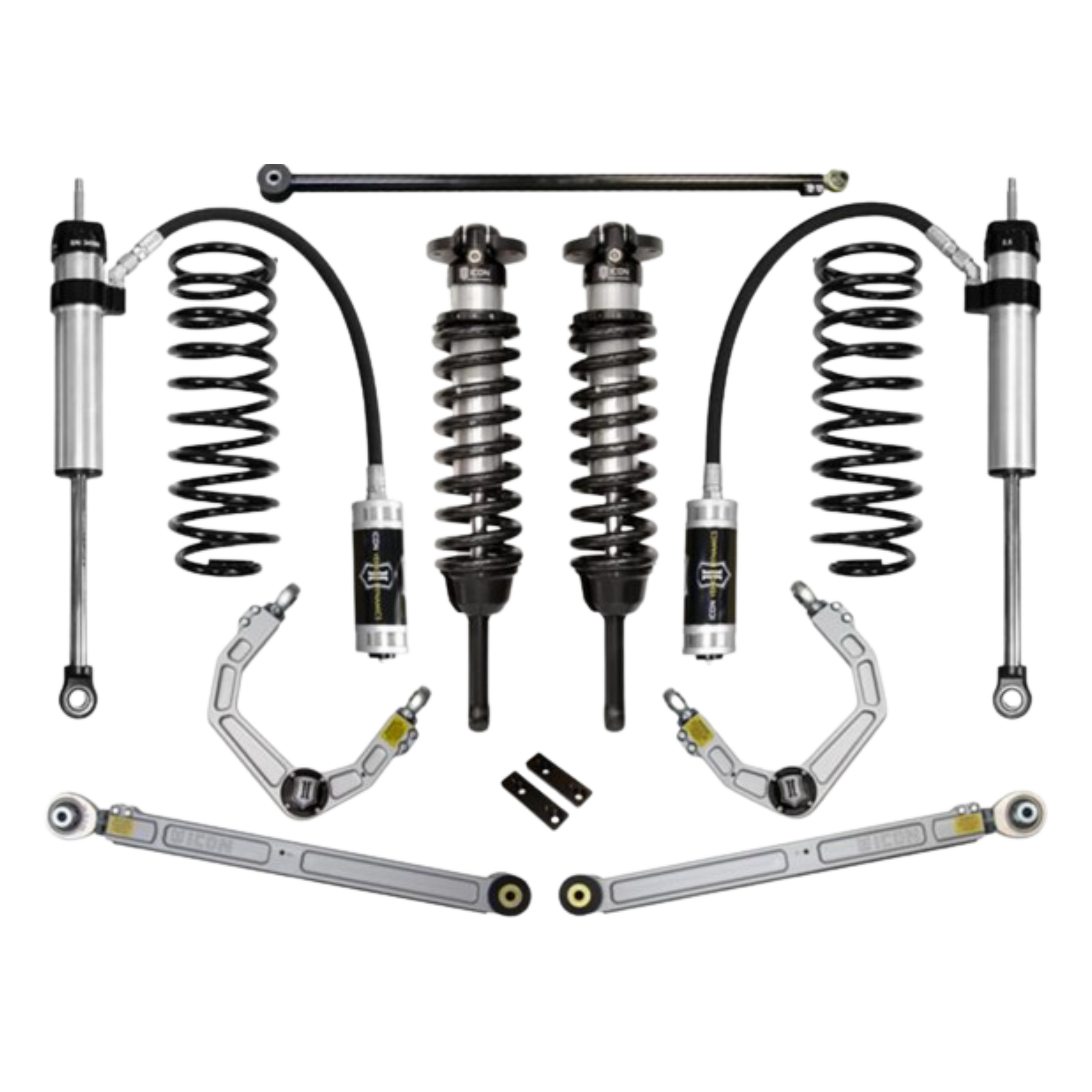

System Components:

• 58647 (QTY: 1) | 10-14 FJ/10-23 4RNR/10-23 GX EXT TRAVEL 2.5 VS IR COILOVER KIT
• 58551DJ (QTY: 1) | 07-14 FJ/03-23 4RNR/03-23 GX BILLET UCA DJ KIT
• 54000 (QTY: 1) | 07-14 FJ/03-23 4RNR/08-21 LC 200/03-23 GX BILLET LOWER TRAILING ARM KIT
• 52700 (QTY: 1) | 07-14 FJ/03-23 4RNR/03-23 GX REAR 2" SPRING KIT
• 54200 (QTY: 1) | 07-14 FJ/03-23 4RNR/03-23 GX REAR ADJ TRACK BAR KIT
• 57810P (QTY: 1) | 07-23 FJ/03-23 4RNR/03-23 GX 1-3" REAR 2.5 VS RR PAIR
