Icon | Stage 5 Suspension System | Billet | 1.25"-3" Lift Kit

Icon | Stage 5 Suspension System | Billet | 1.25"-3" Lift Kit

$4,729.50 USD
$5,255.00 USD $4,729.50 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options

Icon | Stage 5 Suspension System | Billet | 1.25"-3" Lift Kit



Application:

2024+ Lexus GX550


Features and Benefits:

      • 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
      • Increased wheel travel and improved ride quality over stock
      • Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
      • Adjustable coilovers provide 1.25-3" front lift height over stock
      • Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
      • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
      • 6061 aircraft grade aluminum CNC machined components
      • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
      • Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
      • FK Rod End bearings for extended longevity and minimal deflection
      • 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

      Tech Info:

      • OEM Wheels & Tires Fitment: Yes
      • Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
      • Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
      • Recommended Aftermarket Tires: 34" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
      • APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
      • APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
      • APPLICATION NOTE #175: Will not fit GX550 Overtrail

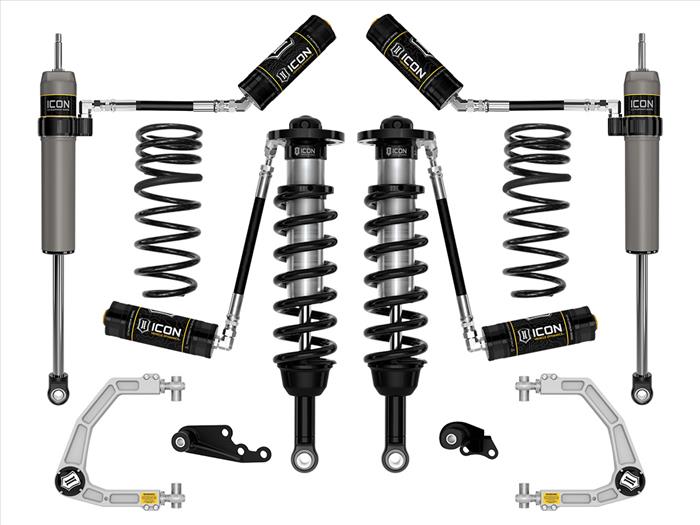

      System Components:

      • 58790 (QTY: 1) | 24 GX550 FRONT 2.5 VS RR COILOVER KIT
      • 58552DJ (QTY: 1) | 24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
      • 55156 (QTY: 1) | 22-24 TUNDRA/23-24 SEQUOIA/24 GX550 DIFF DROP KIT
      • 57870P (QTY: 1) | 24 LC250/24 GX550 0-3" REAR 2.5 VS RR PAIR
      • 52752 (QTY: 1) | 24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT

    K53355
