Icon | Stage 8 Suspension System | Billet | 1.25"-3" Lift Kit



Application:

2024+ Lexus GX550


Features and Benefits:

  • 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
  • All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
  • Increased wheel travel and improved ride quality over stock
  • Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
  • Adjustable coilovers provide 1.25-3" front lift height over stock
  • Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
  • Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
  • On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
  • FK Rod End bearings for extended longevity and minimal deflection
  • 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers



Tech Info:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
  • Recommended Aftermarket Tires: 34" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
  • APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
  • APPLICATION NOTE #175: Will not fit GX550 Overtrail

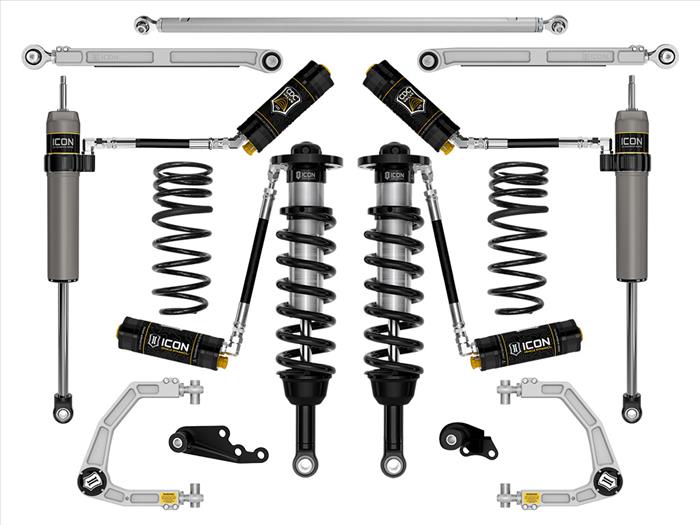

System Components:

  • 58790C (QTY: 1) | 24 GX550 FRONT 2.5 VS RR CDCV COILOVER KIT
  • 58552DJ (QTY: 1) | 24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
  • 55156 (QTY: 1) | 22-24 TUNDRA/23-24 SEQUOIA/24 GX550 DIFF DROP KIT
  • 57870CP (QTY: 1) | 24 LC250/24 GX550 0-3" REAR 2.5 VS CDCV RR PAIR
  • 52752 (QTY: 1) | 24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
  • 54202 (QTY: 1) | 22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
  • 54003 (QTY: 1) | 24 LC250/24 GX550 BILLET REAR LOWER LINK KIT
