Icon | Stage 9 Suspension System | Billet | 1.25"-3" Lift Kit



Application:

2024+ Lexus GX550


Features and Benefits:

    • 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
    • All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
    • Increased wheel travel and improved ride quality over stock
    • Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
    • Adjustable coilovers provide 1.25-3" front lift height over stock
    • Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
    • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
    • 6061 aircraft grade aluminum CNC machined components
    • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
    • Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
    • Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
    • On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
    • FK Rod End bearings for extended longevity and minimal deflection
    • 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers



    Tech Info:

    • OEM Wheels & Tires Fitment: Yes
    • Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
    • Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
    • Recommended Aftermarket Tires: 34" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
    • APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
    • APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
    • APPLICATION NOTE #175: Will not fit GX550 Overtrail

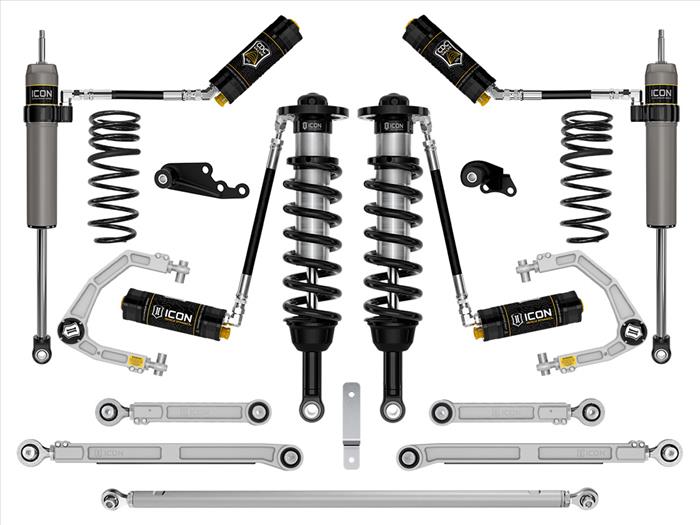

    System Components:

    • 58790C (QTY: 1) | 24 GX550 FRONT 2.5 VS RR CDCV COILOVER KIT
    • 58552DJ (QTY: 1) | 24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
    • 55156 (QTY: 1) | 22-24 TUNDRA/23-24 SEQUOIA/24 GX550 DIFF DROP KIT
    • 57870CP (QTY: 1) | 24 LC250/24 GX550 0-3" REAR 2.5 VS CDCV RR PAIR
    • 52752 (QTY: 1) | 24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
    • 54202 (QTY: 1) | 22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
    • 54003 (QTY: 1) | 24 LC250/24 GX550 BILLET REAR LOWER LINK KIT
    • 54102 (QTY: 1) | 22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/LC250/GX550 BILLET REAR UPPER LINK KIT
    • 55161 (QTY: 1) | 24 LC250/24 GX550 REAR UPPER LINK SENSOR BRACKET KIT
