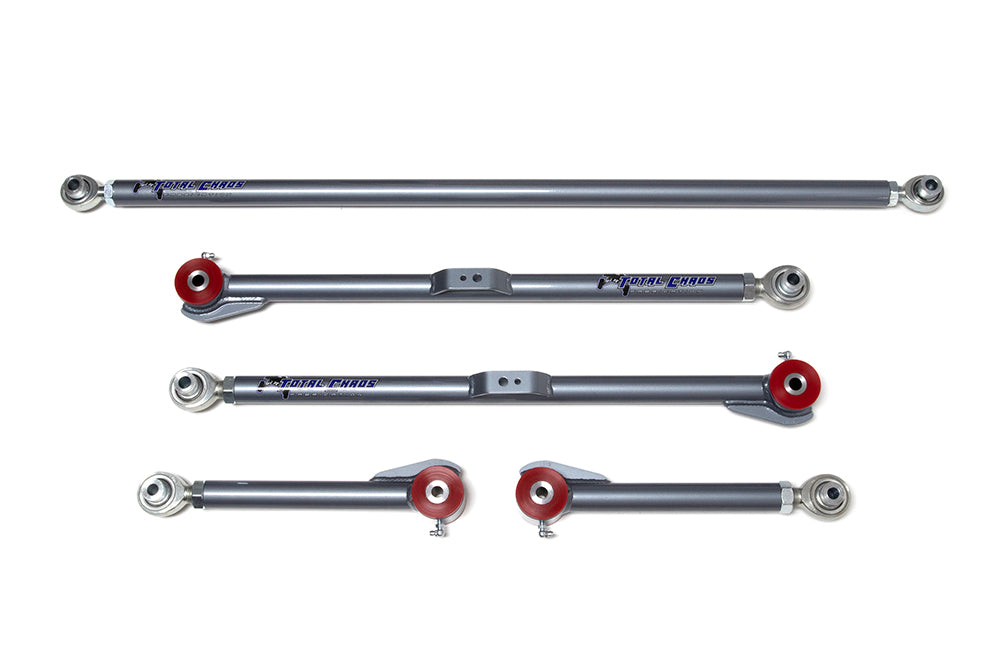

Total Chaos Chromoly Adjustable Rear Links

Total Chaos Chromoly Adjustable Rear Links

86400

Application:

2003-2009 Lexus GX470

2010-2023 Lexus GX460

2007-2014 Toyota FJ Cruiser

2005-2023 Toyota Tacoma

2003-2024 Toyota 4Runner

Features:

- 100% bolt on system.

- Pan hard bar includes 3/4" heims on both ends making it fully adjustable.

- 1.5" more droop wheel travel over stock links when longer shocks are installed.

- Constructed from 1 1/4" .375 wall 4130 chromoly tubing for maximum strength.

- Includes urethane pivot bushings and zerk fitting for easy maintenance.

- Hi-misalignment spacers and hardware are included.

- Upper and lower links are designed to incorporate a heim joint on non-axle side making this rear link system adjustable in length. Ships pre-set to factory length.

Important: TOTAL CHAOS aftermarket parts and supplied components have been engineered around the design of a factory chassis and related suspension components. Cross installing some aftermarket combinations of equipment may cause conflicts in fitment, and can cause geometry changes that were not designed or intended by TOTAL CHAOS. This can result in vehicle alignment issues, contact issues with other components, improper fitment issues, or cause accelerated wear and tear on some parts. TOTAL CHAOS can not guarantee that our suspension systems and accessories are compatible to be installed with another brands aftermarket equipment.

Parts Included:

UPPER LINK - QTY: (2)

LOWER LINK - QTY: (2)

PANHARD BAR - QTY: (1)

NUT, 7/8"-14 RHT JAM - QTY: (4)

NUT, 8MM-1.25 FLANGE HEAD NUT - QTY: (2)

NUT, 3/4"-16 RHT JAM - QTY: (2)

HEIM SPACER, UPPER LINK - QTY: (4)

HEIM SPACER, LOWER LINK - QTY: (4)

HEIM SPACER, PANHARD BAR - QTY: (4)

INNER SLEEVE (LARGE HOLE) - QTY: (2)

INNER SLEEVE (SMALL HOLE) - QTY: (2)

UNIVERSAL BUSHING, HALF - QTY: (8)

ZERK FITTING, 1/4"-28 90 DEGREE - QTY: (4)

RHT 7/8" X 7/8" HEIM - QTY: (4)

RHT 3/4" X 3/4" HEIM - QTY: (2)
