Total Chaos Shock Hoop & 2.5" Bypass Package Mid Travel 2016-2023 Toyota Tacoma

Maximize your vehicles dampening control and custom tunability when you install a secondary shock.

4130 pre-bent chromoly shock hoops are designed to install TC custom length secondary 2.5" bypass shocks.

Reinforces the factory coil bucket. The low profile design keeps the hoop from contacting the inner fender well.

Flush mount top plate was designed to allow the hoop to be used with shocks that use bolts or studs on upper mount and eliminates the need to trim the inner fenderwell to install the rear bolt.

Upper shock tabs are tacked in place to aid in secondary shock location set up. Welding is required.

Grade 8 hardware included.

Designed specifically for TOTAL CHAOS lower control arms with dual shock tabs.

NOTE: All dual shock lower control arms require a 1.25" wheel spacer to keep the tire from hitting the second shock mount at full steering lock even if you do not have a secondary shock installed.

Important: TOTAL CHAOS aftermarket parts and supplied components have been engineered around the design of a factory chassis and related suspension components. Cross installing some aftermarket combinations of equipment may cause conflicts in fitment, and can cause geometry changes that were not designed or intended by TOTAL CHAOS. This can result in vehicle alignment issues, contact issues with other components, improper fitment issues, or cause accelerated wear and tear on some parts. TOTAL CHAOS can not guarantee that our suspension systems and accessories are compatible to be installed with another brands aftermarket equipment.

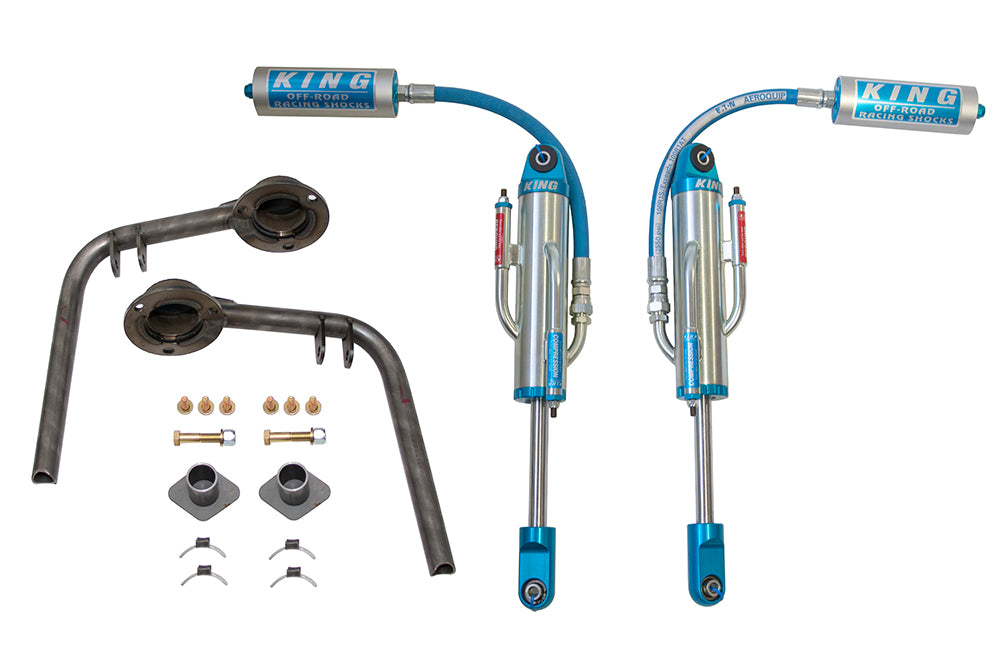

Parts included:

TOTAL CHAOS Dual Shock Hoops PN: 86610 - QTY: (1)

KING 2.5" FRONT BYPASS SHOCKS (PAIR) PN: KNG-TC1119-25 - QTY: (1)
