Total Chaos Spindle Gussets With Sway Bar Mounts

Total Chaos Spindle Gussets With Sway Bar Mounts

59698-SB

Application:

2003-2009 Lexus GX470

2010-2023 Lexus GX460

2007-2014 Toyota FJ Cruiser

2005-2023 Toyota Tacoma

2003-2024 Toyota 4Runner

Features:

Must have reinforcement for anyone who wants to play in the dirt!

Strengthens spindle uprights and prevents the knuckle from damage during hard impacts.

Retains the factory sway bar and includes an additional steering arm gusset.

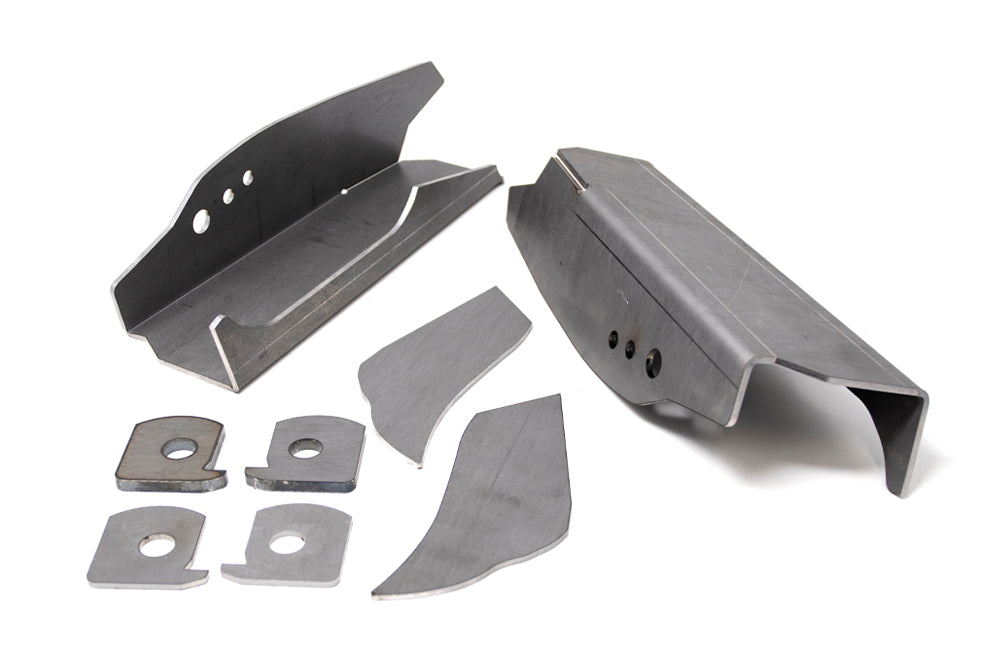

1/8'' prebent laser cut mild steel brackets.

Welding and grinding are required to install.

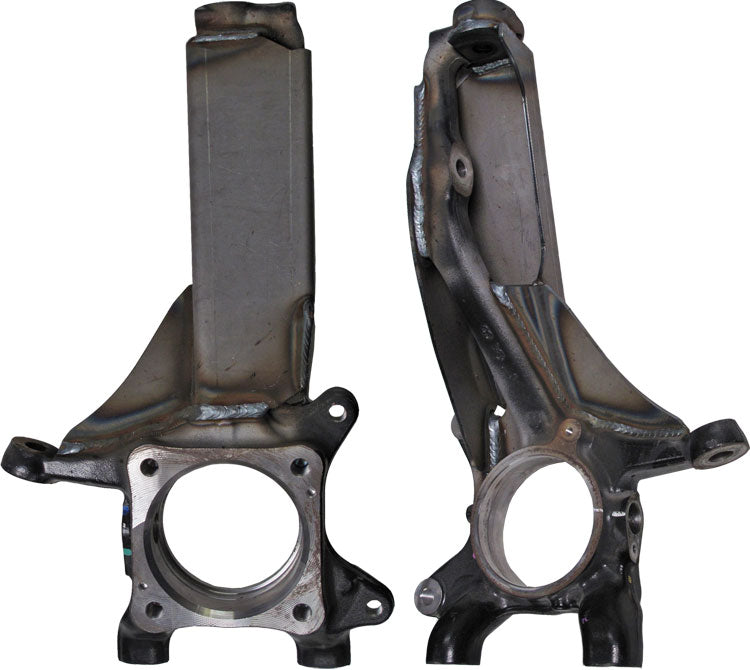

Factory spindles are forged, not cast and gussets can be MIG or TIG welded directly to them.

Trucks running factory back spacing wheels must run 1.25'' wheel spacers. To clear without spacers, aftermarket wheels must have a maximum backspace of 4.5'' for 16'' wheels and 4.75'' for 17'' wheels.

Kit includes 1 pair of gussets for driver and passenger side.

Designed for use with TC uniball upper control arms. May not be compatible with other manufacturers' control arms and hardware.

These are model specific. Check your year, make & model.
